Laksamana Hang Nadim 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Laksamana Hang Nadim (ex- كهَلِد ِبن َل وَلِد [Khalid Ibn Al Walid]) | 134 | Breda Fincantieri, Porto Marghera, Italy | 3.6.1982 | 5.7.1983 | 1987 // 28.7.1997 | in service (2019) | |
| Laksamana Tun Abdul Jamil (ex- سََد ِبن َلِ وَككَد [Saad Ibn Ali Wakkad]) | 135 | Breda Fincantieri, Porto Marghera, Italy | 17.8.1982 | 2.12.1983 | 1987 // 28.7.1997 | in service (2019) | |
| Laksamana Muhammad Amin (ex- بدُللَه بِن َبِ سِهر [Abdullah Ben Abi Serh]) | 136 | Breda Fincantieri, Porto Marghera, Italy | 22.3.1982 | 5.7.1983 | 1987 // 31.7.1999 | in service (2019) | |
| Laksamana Tan Pusmah (ex- سَلَه َلدِن َل َيُُبِ [Salah Aldin Al Ayoobi]) | 137 | Breda Fincantieri, Porto Marghera, Italy | 17.9.1982 | 30.3.1984 | 1987 // 31.7.1999 | in service (2019) |
|
Displacement standard, t |
600 |
|
Displacement full, t |
705 |
|
Length, m |
57.8 pp 62.3 oa |
|
Breadth, m |
9.30 |
|
Draught, m |
2.90 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 20V956 TB92 diesels |
|
Power, h. p. |
24000 |
|
Max speed, kts |
37 |
|
Fuel, t |
diesel oil 126 |
|
Endurance, nm(kts) |
2300(18) |
|
Armament |
2 x 3 Otomat Mk 2 Block IV SSM (6 Otomat Mk 2 Block IV), 1 x 4 Albatros SAM (6 Aspide), 1 x 1 - 76/62 OTO-Melara Compact SR, 1 x 2 - 40/70 OTO-Breda Compact Twin 40, 2 x 3 - 324 ILAS-3 TT (6 A244S) |
|
Electronic equipment |
134, 135: type 1007, RAN-12L/X, 2x RTN-10X, RTN-20X radars, 2x CO3 e/o systems, ASO84-41 sonar, INS-3B, TQN-5 ECM suites, 2x SCLAR decoy RL, IPN-10 CCS 136, 137: type 1007, RAN-12L/X, 2x RTN-10X, RTN-20X radars, 2x CO3 e/o systems, ASO84-41 sonar, INS-3B, TQN-5 ECM suites, 2x SCLAR decoy RL, IPN-S CCS |
|
Complement |
56 |
Project history: Ordered in 1981 by Iraqi navy, completed in 1987 and laid up after trials due to financial reasons. In 1990 when embargo was declared, transfer to Iraq was cancelled, in 1993 ships were offered to Morocco and in 1995 they were purchased by Malaysia.
Modernizations: 2003-04, Laksamana Hang Nadim, Laksamana Tun Abdul Jamil: - IPN-10 CCS; + IPN-S CCS
2004-05, all: - INS-3B, TQN-5 ECM suites; + RQN-5C, Nettuno 1400 ECM suites
Naval service: No significant events.

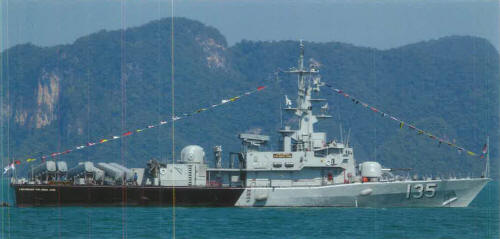

Laksamana Tun Abdul Jamil 2013
