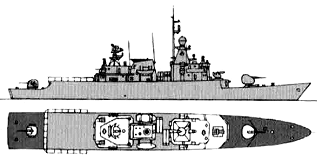

Kasturi 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Kasturi | F25 | Howaldtswerke, Kiel, West Germany | 3.1.1983 | 14.5.1983 | 15.8.1984 | in service (2019) | |
| Lekir | F26 | Howaldtswerke, Kiel, West Germany | 3.1.1983 | 14.5.1983 | 15.8.1984 | in service (2019) |
|
Displacement standard, t |
1600 |
|
Displacement full, t |
2100 |
|
Length, m |
91.8 pp 97.3 oa |
|
Breadth, m |
11.3 |
|
Draught, m |
3.70 |
|
No of shafts |
2 |
|
Machinery |
4 MTU 20V1163 TB82 diesels |
|
Power, h. p. |
23000 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil 200 |
|
Endurance, nm(kts) |
5000(14) |
|
Armament |
2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 100/55 Creusot-Loire Compact, 1 x 1 - 57/70 SAK-57 Mk 1, 2 x 2 - 30/75 Emerlec EX-30, 1 x 2 - 375 Bofors ASWRL, helicopter deck |
|
Electronic equipment |
Decca 1226, DA08, WM22 radars, 2x LIOD e/o systems, DSQS-21C sonar, Rapids, Scimitar ECM suites, 2x Dagaie decoy RL, SEWACO MA CCS |
|
Complement |
128 |
Project history: FS1500 design, ordered in 1981. Planned building of the second pair was cancelled. Rated as corvettes in Malaysian navy. Telescoping hangar for small Wasp-size helicopter may be installed.
Modernizations: 1994, both: - 1 x 1 - 100/55; + 1 x 1 - 100/55 Cresot-Loire Compact Mk 2
2001-2002, both: - 2 x 2 MM38 Exocet SSM, Rapids ECM suite; + 2 x 4 MM40 Exocet Block IIA SSM (8 MM40 Block IIA), DR3000 ECM suite
2013, Kasturi; 2014, Lekir: - 1 x 1 - 100/55, 2 x 2 - 30/75, 1 x 2 - 375 Bofors ASWRL, Decca 1226 radar, DSQS-21C sonar, DR3000 ECM suite, 2x Dagaie decoy RL, SEWACO MA CCS; + 2 x 1 - 30/75 DS-30B, 2 x 3 - 324 B-515 TT (6 A244/S), type 1007 radar, Mirador e/o system, DSQS-24C sonar, DR3000S ECM suite, 2x SKWS decoy RL, TACTICOS CCS; helicopter deck was extended aft to embark Fennec helicopter
Naval service: No significant events.

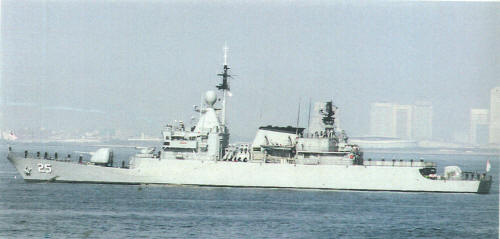

Kasturi 2002

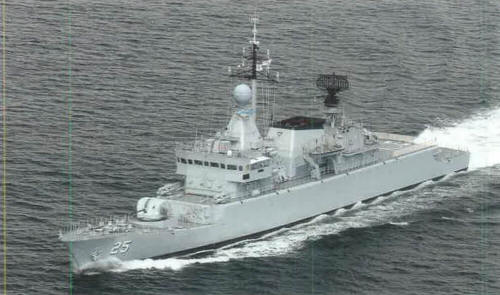

Kasturi 2013
