Hang Tuah 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Hang Tuah (ex-Loch Insh) | F433 | Robb, Leith, UK | 11/1943 | 10.5.1944 | 10.1944 // 12.10.1964 | TS 4.1971, stricken 1977 |
|
Displacement standard, t |
1435 |
|
Displacement full, t |
2260 |
|
Length, m |
87.2 pp 93.6 oa |
|
Breadth, m |
11.8 |
|
Draught, m |
3.76 deep load |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 Admiralty 3-drum boilers |
|
Power, h. p. |
5500 |
|
Max speed, kts |
19.5 |
|
Fuel, t |
oil 724 |
|
Endurance, nm(kts) |
6400(10) |
|
Armament |
1 x 2 - 102/45 Mk 19, 1 x 2 - 40/60 Mk 5, 2 x 1 - 40/60 Mk 7, 2 x 3 - 305 Squid ASWRL, helicopter deck |
|
Electronic equipment |
type 277 radar, type 144, type 147B sonars |
|
Complement |
177 |
Project history: Former RN 'Loch' class frigate.
Modernizations: 4.1971, as TS: - 1 x 2 - 102/45, 1 x 2 - 40/60, 2 x 3 - 305 Squid ASWRL; + hangar
Naval service: No significant events.

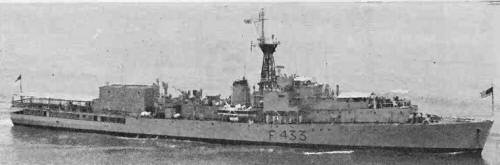

Hang Tuah 1972
