Names |
PX1 Mahkota PX2 Temenggong PX3 Hulubalang PX4 Maharajesetia PX5 Maharajelela, 2012- 2950 Gemia PX6 Pahlawan PX7 Bentara PX8 Periwa PX9 Pertanda, 2012- 2951 Rawa PX10 Shahbandar PX11 Sangsetia PX12 Laksmana PX13 Pekan PX14 Kelang PX15 Kuala Kangsar PX16 Arau, 2012- 2952 Peringgi PX17 Sri Gumantong PX18 Sri Labuan PX19 Alor Star PX20 Kota Bahru |
|
Builders |
Vosper, Singapore: PX1-20 |
|
Completed |
1963-1970: PX1-20 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1992-1993: PX1-4, 7, 8, 13, 14 2004-2005: PX6, 10-12, 15, 17, 18 2017-18: PX19, 20 in service (2019): 2950-2952 |
|
Displacement standard, t |
|
|
Displacement full, t |
85 |
|
Length, m |
26.3 |
|
Breadth, m |
5.70 |
|
Draught, m |
1.45 |
|
No of shafts |
2 |
|
Machinery |
2 Mercedes-Benz MB820Db diesels |
|
Power, h. p. |
2460 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 700(15) |
|
Armament |
2 x 1 - 20/70 Mk 10, 1 x 1 - 7.6/90 |
|
Electronic equipment |
KH14/9 radar |
|
Complement |
15 |
Project history: Class was operated by Royal Malaysian Marine Police except PX17 and PX18 served in Sabah.
Modernizations: None.
Naval service: Three boats (Nos 2950-2952) were transferred to Maritme Enforcement Agency in 2012. Sri Gumangtong and Sri Labuan served till 1990 under the flag of Sabah Maritime Police.

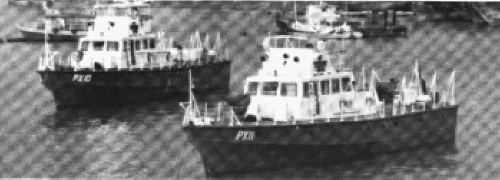

Shahbandar ang Sangsetia 1975

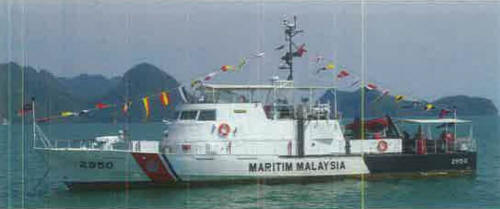

Gemia 2013
