| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Bahtera Juang, 6.2005- Kimanis | K33, 6.2005- 3225 | Malaysian SE, Pasir Gudang | 1982 | Maritime Enforcement Agency 6.2005, in service (2019) | |||
| Bahtera Kinabalu, 6.2005- Ramunia | K35, 6.2005- 3221 | Malaysian SE, Pasir Gudang | 1982 | Maritime Enforcement Agency 6.2005, in service (2019) | |||
| Bahtera Perak, 2012- Burau | K36, 2012- 3226 | Malaysian SE, Pasir Gudang | 1983-84 | Maritime Enforcement Agency 2012, in service (2019) | |||
| Bahtera Bayu, 6.2005- Marudu | K37, 6.2005- 3222 | Malaysian SE, Pasir Gudang | 1983-84 | Maritime Enforcement Agency 6.2005, in service (2019) | |||
| Bahtera Hijau, 6.2005- Danga | K38, 6.2005- 3223 | Malaysian SE, Pasir Gudang | 1983-84 | Maritime Enforcement Agency 6.2005, in service (2019) | |||
| 2012- Nipah | K39, 2012- 3227 | Malaysian SE, Pasir Gudang | 1983-84 | Maritime Enforcement Agency 2012, in service (2019) | |||
| Bahtera Jerai, 6.2005- Siangin | K40, 6.2005- 3224 | Malaysian SE, Pasir Gudang | 1983-84 | Maritime Enforcement Agency 6.2005, in service (2019) |
|
Displacement standard, t |
100 |
|
Displacement full, t |
143 |
|
Length, m |
29.5 pp 32.4 oa |
|
Breadth, m |
7.20 |
|
Draught, m |
1.80 |
|
No of shafts |
2 |
|
Machinery |
2 Paxman-Valenta 16RP200 diesels |
|
Power, h. p. |
4000 |
|
Max speed, kts |
27 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2000(8) |
|
Armament |
1 x 1 - 40/60 Mk 3, 2 x 1 - 7.6/90 |
| Electronic equipment | Kelvin-Hughes radar |
|
Complement |
24 |
Project history: Customs. Vosper 32m design.
Modernizations: None.
Naval service: In 2005 and 2012 all were transferred to Maritime Enforcement Agency.

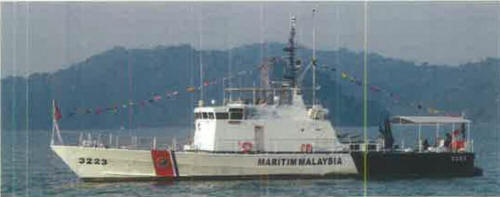

Danga 2013
