Kris 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Sri Kedah | P3138 | Vosper, Portsmouth, UK | 4.6.1962 | 2.1963 | stricken 1976 | ||
| Sri Selangar | P3139 | Vosper, Portsmouth, UK | 17.7.1962 | 3.1963 | stricken 1996 | ||
| Sri Perek | P3140 | Vosper, Portsmouth, UK | 30.8.1962 | 6.1963 | foundered 1.1984 | ||
| Sri Pahang | P3141 | Vosper, Portsmouth, UK | 15.10.1962 | 1963 | stricken 1976 | ||
| Sri Kelantan | P3142 | Vosper, Portsmouth, UK | 8.1.1963 | 11.1963 | stricken 1996 | ||
| Sri Trengganu | P3143 | Vosper, Portsmouth, UK | 12.12.1962 | 12.1963 | stricken 1996 | ||
| Sri Sabah, 2006- Labas | P3144, 2006- 3137 | Vosper, Portsmouth, UK | 30.12.1963 | 9.1964 | MMEA 2006, stricken 208 | ||
| Sri Sarawak, 2006- Sipadan | P3145, 2006- 3131 | Vosper, Portsmouth, UK | 20.1.1964 | 9.1964 | MMEA 2006, stricken 2012 | ||
| Sri Negri Sembilan, 2006- Nyireh | P3146, 2006- 3138 | Vosper, Portsmouth, UK | 17.9.1964 | 9.1964 | MMEA 2006, stricken 2017 | ||
| Sri Melaka, 2006- Rumbia | P3147, 2006- 3144 | Vosper, Portsmouth, UK | 25.2.1964 | 11.1964 | Sabah 1964-1990, MMEA 2006, stricken 2018 | ||
| Kris, 2006- Lang | P3148, 1972- P34, 2006- 3132 | Vosper, Portsmouth, UK | 1.1.1966 | 3.1966 | MMEA 2006, stricken 2018 | ||
| Sundang, 2006- Segantang | P3149, 1972- P36, 2006- 3133 | Vosper, Portsmouth, UK | 22.5.1966 | 11.1966 | MMEA 2006, stricken 2018 | ||
| Badek, 2006- Jarek | P3150, 1972- P37, 2006- 3134 | Vosper, Portsmouth, UK | 8.5.1966 | 12.1966 | MMEA 2006, stricken 2014 | ||
| Renchong, 2006- Kuraman | P3151, 1972- P38, 2006- 3139 | Vosper, Portsmouth, UK | 22.6.1966 | 1.1967 | MMEA 2006, stricken 2016 | ||
| Tombak, 2006- Siamil | P3152, 1972- P39, 2006- 3140 | Vosper, Portsmouth, UK | 20.6.1966 | 3.1967 | MMEA 2006, stricken 2015 | ||
| Lembing, 2006- Ligitan | P3153, 1972- P40, 2006- 3145 | Vosper, Portsmouth, UK | 22.8.1966 | 4.1967 | MMEA 2006, stricken 2014 | ||
| Serampang | P3154, 1972- P41 | Vosper, Portsmouth, UK | 15.9.1966 | 5.1967 | retired 1.2004 | ||
| Panah, 2006- Kukup | P3155, 1972- P42, 2006- 3135 | Vosper, Portsmouth, UK | 10.10.1966 | 7.1967 | MMEA 2006, stricken 2018 | ||
| Kerambit, 2006- Pemanggil | P3156, 1972- P43, 2006- 3141 | Vosper, Portsmouth, UK | 20.11.1966 | 7.1967 | MMEA 2006, stricken 2014 | ||
| Beledau, 2006- Bidong | P3157, 1972- P44, 2006- 3142 | Vosper, Portsmouth, UK | 11.1.1967 | 9.1967 | MMEA 2006, stricken 2014 | ||
| Kelewang, 2006- Sempadi | P3158, 1972- P45, 2006- 3136 | Vosper, Portsmouth, UK | 31.1.1967 | 10.1967 | MMEA 2006, stricken 2015 | ||
| Rentaka, 2006- Satang | P3159, 1972- P46, 2006- 3143 | Vosper, Portsmouth, UK | 15.3.1967 | 9.1967 | MMEA 2006, stricken 2018 | ||
| Sri Perlis | P3160, 1972- P47 | Vosper, Portsmouth, UK | 26.5.1967 | 1.1968 | in service (2019) | ||
| Sri Johor | P3161, 1972- P49 | Vosper, Portsmouth, UK | 21.8.1967 | 2.1968 | in service (2019) |
|
Displacement standard, t |
96 |
|
Displacement full, t |
109 |
|
Length, m |
31.4 oa 29.0 pp |
|
Breadth, m |
5.95 |
|
Draught, m |
1.65 |
|
No of shafts |
2 |
|
Machinery |
2 Bristol-Siddeley or Maybach MD655/18 diesels |
|
Power, h. p. |
3550 |
|
Max speed, kts |
27 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
P3138-3143, 3148-3161: 1400(14) P3144-3147: 1660(14) |
|
Armament |
2 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 7.6/90 |
|
Electronic equipment |
Decca 616 radar |
|
Complement |
22 - 23 |
Project history: Six patrol craft were ordered from Vosper, Portsmouth, in September 1961 for delivery in 1963; the next four were ordered in March 1963 for delivery in 1965, followed by fourteen more in 1965 for delivery in 1966-68. Various minor improvements have been made in each group but the basic design is the same - an all-welded hull with aluminium superstructure.
Modernizations: None.
Naval service: In 2006 almost all boats were transferred to Malaysian Maritime Enforcement Agency (MMEA). Sri Melaka served since completion in the Sabah Maritime Police.

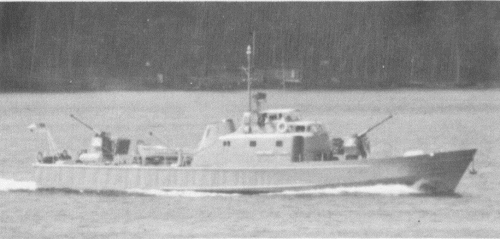

Sri Sabah 1976

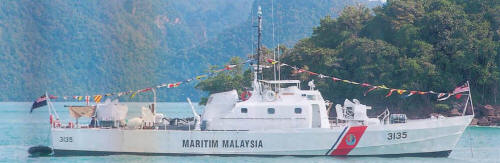

Kukup 2006
