Perkasa 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Perkasa | P150 | Vosper, Portsmouth, UK | 26.10.1965 | mid-1967 | stricken 1977 | ||
| Handalan | P151 | Vosper, Portsmouth, UK | 18.1.1966 | mid-1967 | stricken 1977 | ||
| Gempita | P152 | Vosper, Portsmouth, UK | 6.4.1966 | mid-1967 | stricken 1977 | ||
| Pendekar | P153 | Vosper, Portsmouth, UK | 24.6.1966 | mid-1967 | stricken 1977 |
|
Displacement standard, t |
95 normal |
|
Displacement full, t |
114 |
|
Length, m |
27.4 wl 30.4 oa |
|
Breadth, m |
7.30 |
|
Draught, m |
2.10 max |
|
No of shafts |
3 |
|
Machinery |
3 Rolls-Royce Proteus gas turbines / 2 General Motors diesels |
|
Power, h. p. |
12750 / 380 |
|
Max speed, kts |
54 / 10 |
|
Fuel, t |
diesel oil 24 |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 40/60 Mk 9, 1 x 1 - 20/70 Mk 7, 4 - 533 TC or 10 mines |
|
Electronic equipment |
Decca nav. radar |
|
Complement |
24 |
Project history: Four modified versions of the RN 'Brave' class were ordered in October 1964 and shipped out from England in 1967. P150 achieved 57kts on trials. Generally similar to the RN craft but the hull was made of bonded wood, as in the private-venture boat Ferocity. Air conditioned quarters. Another improvement was the provision of cruising diesels on the wing shafts to improve endurance.
Modernizations: 1971, all: - 4 - 533 TC; + 2 x 4 SS-12 SSM (8 SS-12)
Naval service: No significant events.

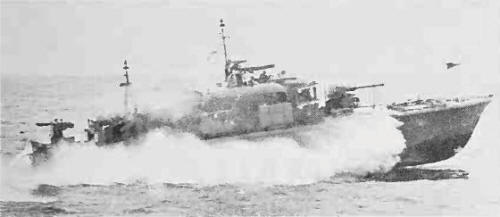

Gempita 1972
