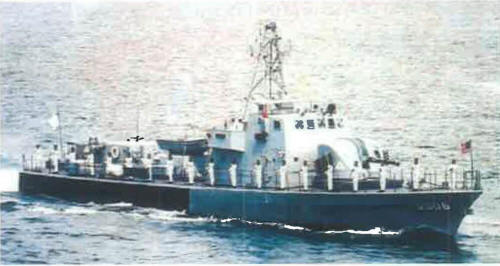

Jerong 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Jerong | 3505 | Hong Leong-Lürssen, Butterworth | 28.7.1975 | 27.3.1976 | in service (2019) | ||
| Todak | 3506 | Hong Leong-Lürssen, Butterworth | 16.3.1976 | 16.6.1976 | in service (2019) | ||
| Paus | 3507 | Hong Leong-Lürssen, Butterworth | 2.6.1976 | 16.8.1976 | in service (2019) | ||
| Yu | 3508 | Hong Leong-Lürssen, Butterworth | 17.7.1976 | 15.11.1976 | in service (2019) | ||
| Baung | 3509 | Hong Leong-Lürssen, Butterworth | 5.10.1976 | 11.7.1977 | in service (2019) | ||
| Pari | 3510 | Hong Leong-Lürssen, Butterworth | 1/1977 | 23.3.1977 | in service (2019) |
|
Displacement standard, t |
210 |
|
Displacement full, t |
245 |
|
Length, m |
44.9 |
|
Breadth, m |
7.00 |
|
Draught, m |
2.48 propellers |
|
No of shafts |
3 |
|
Machinery |
3 MTU MB870 diesels |
|
Power, h. p. |
9900 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2000(15) |
|
Armament |
1 x 1 - 57/70 SAK-57 Mk 1, 1 x 1 - 40/70 Bofors 350 |
|
Electronic equipment |
Decca 1226 radar, Naja e/o system |
|
Complement |
36 |
Project history: Six FPB45 type gunboats were ordered in 1973 from Lürssen for building at a new yard at Butterworth. Lürssen design with Swedish armament.
Modernizations: mid-2010s, all: - Decca 1226 radar; + type 1007 radar, DR-3000 ECM suite
Naval service: No significant events.
Todak 2007
