LITHUANIAN NAVY (LITHUANIA)

ESCORTS

ŽEMAITIS corvettes (1980-1981/1993)

Žemaitis 1995

Name No Yard No Builder Laid down Launched Comp Fate
Žemaitis (ex-ÌÏÊ-44 [MPK-44], ex- Êîìñîìîëåö Ëàòâèè [Komsomolets Latvii], ex- ÌÏÊ-44 [MPK-44]) F11 104 Leninskaya Kuznitsa, Kiev, USSR 18.7.1977 29.3.1980 25.10.1980 // 28.4.1993 stricken 10.2008
Aukštaitis (ex-ÌÏÊ-108 [MPK-108]) F12 722 Krasnyy Metallist, Zelenodolsk, USSR 14.5.1979 6.2.1981 25.9.1981 // 28.4.1993 stricken 11.2009



Displacement standard, t

835

Displacement full, t

990

Length, m

71.1

Breadth, m

10.2

Draught, m

3.54

No of shafts

3

Machinery

CODAG, 1 M-8 gas turbine + 2 M-507A diesels

Power, h. p.

38000 (18000 + 20000)

Max speed, kts

32

Fuel, t

diesel oil

Endurance, nm(kts)

2700(14)

Armament

1 x 2 Osa-M SAM (20 9M33), 1 x 2 - 57/50 AK-725, 1 x 6 - 30/54 AK-630/M, 2 x 2 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR, 18 mines

Sensors

MR-302 Rubka, 4R-33, MR-123 Vympel-A, Don radars, MG-322T Amgun', MG-339T Shelon', MGS-407K sonars, MI-110K/KM, MI-110R wake detectors, Bizan'-4B ECM suite

Complement

83

Project history: Former Soviet project 1124 small ASW ships.

Modernizations: None.

Naval service: No significant events.

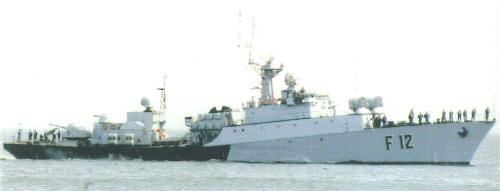

Aukštaitis 2003
