Al Badr 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| البدر [Al Badr] (ex-Á-587 [B-587]) | 311 | 01207 | Admiralty, Leningrad, USSR | 12.3.1981 | 19.6.1981 | 25.10.1981 // 1.1982 | inoperable 1995 |
| الفاتح [Al Fateh] (ex-Á-533 [B-533]) | 312 | 01296 | Admiralty, Leningrad, USSR | 23.12.1975 | 16.4.1976 | 8.10.1976 // 12.1976 | foundered 1993 |
| الأحد [Al Ahad] (ex-Á-311 [B-311]) | 313 | 01297 | Admiralty, Leningrad, USSR | 26.9.1976 | 17.2.1977 | 15.9.1977 // 2.1978 | inoperable 1995 |
| المتراجع [Al Mitraqah] (ex-Á-590 [B-590]) | 314 | 01206 | Admiralty, Leningrad, USSR | 5.4.1980 | 14.7.1980 | 21.11.1980 // 21981 | inoperable 1995 |
| الخيبر [Al Khyber] (ex-Á-588 [B-588]) | 315 | 01208 | Admiralty, Leningrad, USSR | 26.2.1982 | 11.6.1982 | 28.9.1982 // 2.1983 | inoperable 1995 |
| الحنين [Al Hunayn] (ex-Á-330 [B-330]) | 316 | 01298 | Admiralty, Leningrad, USSR | 5.3.1977 | 20.5.1977 | 27.10.1977 // 2.1978 | inoperable 1995 |
|
Displacement standard, t |
|
|
Displacement normal, t |
1952 / 2475 |
|
Length, m |
91.3 |
|
Breadth, m |
7.50 |
|
Draught, m |
5.09 |
|
No of shafts |
3 |
|
Machinery |
3 2D42 diesels / 1 PG-102 + 2 PG-101 electric motors |
|
Power, h. p. |
5700 / 5400 (2700 + 2x1350) |
|
Max speed, kts |
16.8 / 16 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
30000(8.1) / 400(2) |
|
Armament |
6 - 533 TT (bow, 12), 4 - 400 TT (stern, 10) |
|
Electronic equipment |
Flag radar, MG-200 Arktika-M, Tuloma, MG-10M Kola-M, Svet-M sonars, Nakat ECM suite |
|
Complement |
77 |
|
Diving depth operational, m |
250 |
Project history: Soviet export project I641K submarines, built for service in tropics.
Modernizations: None.
Naval service: Al Fateh foundered moored in harbour in 1993 and was never repaired.

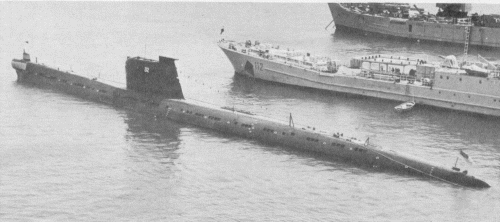

Al Fateh 1978
