Ibn Ouf 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| إبن عوف [Ibn Ouf] | L130, 1983- 132 | CNIM, La Seyne, France | 1.4.1976 | 22.10.1976 | 11.3.1977 | in service (2019) | |
| أبن حارثة [Ibn Haritha] | L131, 1983- 134 | CNIM, La Seyne, France | 18.4.1977 | 18.10.1977 | 10.3.1978 | in service (2019) |
|
Displacement standard, t |
2200 |
|
Displacement full, t |
2800 |
|
Length, m |
100.0 |
|
Breadth, m |
15.7 |
|
Draught, m |
2.60 |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 16PA4 V185 diesels |
|
Power, h. p. |
5340 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4000(14) |
|
Armament |
3 x 2 - 40/70 Breda-Bofors Compact Twin 40, 1 x 1 - 81/12 mortar, helicopter deck |
| Military load | 570 t cargo or 11 tanks, 240 troops |
|
Sensors |
Decca 1226, Triton radars |
|
Complement |
35 |
Project history: Small tank landing ships. PS700 design.
Modernizations: 2012, Ibn Ouf: diesels were replaced by 2 MTU (5340hp, 15kts)
2013, Ibn Haritha: diesels were replaced by 2 MTU (5340hp, 15kts); - 3 x 2 - 40/70, 1 x 1 - 81/12 mortar
Naval service: No significant events.

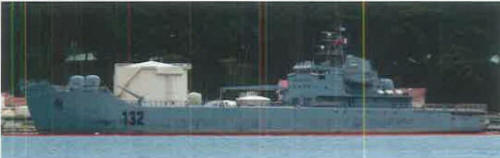

Ibn Ouf 2013
