Wadi M'Ragh 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| وادي مارغ [Wadi M'Ragh], 1981- أسد البحر [Assad Al Bihar] | 412 | CNR, Riva Trigoso, Italy | 25.5.1976 | 29.4.1977 | 14.9.1977 | abandoned 1993 | |
| وادي ماجر [Wadi Majer], 1981- أسد التجر [Assad Al Tougour] | 413 | CNR, Riva Trigoso, Italy | 25.5.1976 | 20.4.1978 | 12.2.1980 | abandoned 1993 | |
| وادي مارست [Wadi Marseat], 1981- أسد الكليج [Assad Al Kalij] | 414 | CNR, Riva Trigoso, Italy | 26.10.1977 | 15.12.1978 | 28.3.1981 | abandoned 1993 | |
| وادي مغراوة [Wadi Magrawa], 1981- أسد الحدود [Assad Al Hudud] | 415 | CNR, Riva Trigoso, Italy | 25.5.1978 | 21.6.1979 | 28.3.1981 | abandoned 1993 |
|
Displacement standard, t |
547 |
|
Displacement full, t |
630 |
|
Length, m |
57.8 pp 61.7 oa |
|
Breadth, m |
9.30 |
|
Draught, m |
2.70 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V956 TB91 diesels |
|
Power, h. p. |
16400 |
|
Max speed, kts |
34 |
|
Fuel, t |
diesel oil 126 |
|
Endurance, nm(kts) |
4150(18) |
|
Armament |
4 x 1 Otomat Mk 1 SSM (4 Otomat Mk 1), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 35/90 GDM-A, 2 x 3 - 324 ILAS-3 TT, 16 mines (instead of SSM) |
|
Sensors |
RAN-11L/X, Decca TM1226, RTN-10X radars, Diodon sonar, INS-1 ECM suite, IPN-10 CCS |
|
Complement |
58 |
Project history: Slower than comparably armed FAC but with much greater range and seakeeping qualities. Four more were ordered in 1980 but never received by Libyans. Completion was delayed by prolonged trials.
Modernizations: None.
Naval service: No significant events.

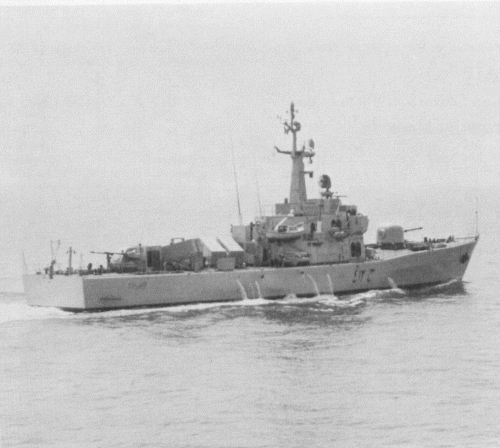

Wadi M'Ragh 1979
