Al Hani 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| الهاني [Al Hani] (ex-ÑÊÐ-201 [SKR-201]) | 212 | 255 | Gorkiy Yd, Zelenodolsk, USSR | 22.9.1982 | 27.4.1985 | 30.12.1985 // 28.6.1986 | in service (2019) |
| القيردبا [Al Kyrdabian] (ex-ÑÊÐ-195 [SKR-195]) | 213 | 256 | Gorkiy Yd, Zelenodolsk, USSR | 18.4.1985 | 27.4.1986 | 25.12.1986 // 24.10.1987 | CTL 20.5.2011 |
|
Displacement standard, t |
1550 |
|
Displacement full, t |
1900 |
|
Length, m |
96.5 |
|
Breadth, m |
12.6 |
|
Draught, m |
3.28 hull 5.39 max |
|
No of shafts |
3 |
|
Machinery |
CODAG: 1 M8V6 gas turbine + 2 68B-6 diesels |
|
Power, h. p. |
20000 + 16000 = 36000 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3800(14) |
|
Armament |
2 x 2 P-20M Termit SSM (4 P-20M), 1 x 2 Osa-M SAM (20 9M33), 2 x 2 - 76/59 AK-726, 2 x 2 - 30/71 AK-230, 4 - 400 TT, 1 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR (12), 14 mines |
|
Sensors |
MR-320 Topaz-2V, Fut-N, 4R-33, MR-105 Turel', MR-104 Rys', Don radars, MG-311 Vychegda sonar, Bizan'-4B ECM suite |
|
Complement |
112 |
Project history: Vosper-Thornycroft Mk 7 frigate design, slightly larger than the two Iranian Mk 5 and with a different armament.
Modernizations: None.
Naval service: Al Kyrdabian was badly damaged 20.5.2011 in the port of Tripoli during NATO air attack and 8.8.2011 capsized and sank. Al Hani in March 2011 escaped to Benghazi and joined the rebels against Kadhafi regime. 5.9.2011, when Libyan regime was destroyed, Al Hani returned to Tripoli.

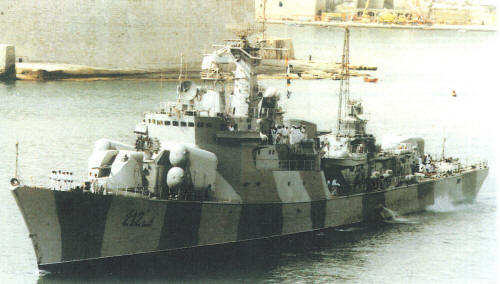

Al Hani 1999
© Ivan Gogin, 2019
