Beir Grassa 1982
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| بير جرسا [Beir Grassa], 1983- شرارة [Sharara] | P518, 1983- 518 | CMN, Cherborg, France | 13.3.1978 | 28.6.1979 | 9.2.1982 | non-operational 2011 | |
| بير جزر [Beir Gzir], 1983- شهاب [Shehab] | P519, 1983- 522 | CMN, Cherborg, France | 10.6.1978 | 22.1.1980 | 4.3.1982 | damaged 5.2011, abandoned | |
| بير جتف [Beir Gtifa], 1983- وهج [Wahag] | P520, 1983- 524 | CMN, Cherborg, France | 30.1.1979 | 20.5.1980 | 29.5.1982 | damaged 5.2011, abandoned | |
| بير جلولد [Beir Glulud], 1983- واحد [Waheed] | P521, 1983- 526 | CMN, Cherborg, France | 20.10.1979 | 30.9.1980 | 8.9.1982 | sunk 24.3.1986 | |
| بير الجندل [Beir Algandula], 1983- شوي [Shouaiai] | P522, 1983- 528 | CMN, Cherborg, France | 12.9.1979 | 14.1.1981 | 2.11.1982 | damaged 5.2011, abandoned | |
| بير قطعته [Beir Ktitat], 1983- سهولة [Shoula] | P523, 1983- 532 | CMN, Cherborg, France | 17.12.1979 | 3.1981 | 29.10.1982 | damaged 5.2011, abandoned | |
| بير الكريم [Beir Alkarim], 1983- شافك [Shafak] | P524, 1983- 534 | CMN, Cherborg, France | 11.3.1980 | 23.6.1981 | 17.12.1982 | in service (2019) | |
| بير الكردم [Beir Alkardmen], 1983- بارك [Bark] | P525, 1983- 536 | CMN, Cherborg, France | 9.6.1980 | 6.10.1981 | 11.3.1983 | non-operational 2011 | |
| بير الكور [Beir Alkur], 1983- رد [Rad] | P526, 1983- 538 | CMN, Cherborg, France | 20.10.1980 | 30.11.1981 | 19.5.1983 | damaged 5.2011, abandoned | |
| بير القصة [Beir Alkuesat], 1983- لهيب [Laheeb] | P527, 1983- 542 | CMN, Cherborg, France | 20.1.1981 | 9.1.1982 | 29.7.1983 | damaged 5.2011, abandoned |
|
Displacement standard, t |
258 |
|
Displacement full, t |
311 |
|
Length, m |
46.2 pp 49.0 oa |
|
Breadth, m |
7.10 |
|
Draught, m |
2.00 |
|
No of shafts |
4 |
|
Machinery |
4 MTU MD20V538 TB91 diesels |
|
Power, h. p. |
18000 |
|
Max speed, kts |
39 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1600(15) |
|
Armament |
2 x 2 Otomat Mk 1 SSM (4 Otomat Mk 1), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 40/70 Breda-Bofors Compact Twin 40 |
|
Sensors |
Triton II, Castor IIB, Decca radars |
|
Complement |
27 |
Project history: 'Combattante IIG' type boats, ordered in 1977. Delay in commission of this class explains by the French embargo on arms sales to Libya, imposed because of Libyan intervention into Chad.
Modernizations: None.
Naval service: Waheed was sunk 24.3.1986 by forces of the US 6th Fleet in the Gylf of Syrth. Shehab, Wahag, Shouaiai, Shoula, Rad and Laheeb were damaged by NATO aircraft during raids in May 2011 and abandoned.

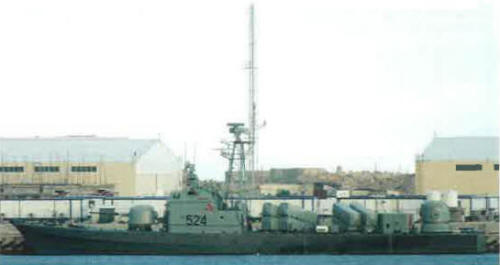

Wahag 2010
