LIBERIAN COAST GUARD / NAVY (LIBERIA)
|
Names |
103 Cavilla 104 Mano |
|
Builders |
Swiftships, Morgan City, USA: 103, 104 |
|
Commissioned |
1976: 103, 104 |
|
Losses |
103 (early 1990s), 104 (early 1990s) |
|
Transfers |
none |
| Discarding | none |
|
Displacement standard, t |
|
|
Displacement full, t |
38 |
|
Length, m |
19.8 |
|
Breadth, m |
5.80 |
|
Draught, m |
0.80 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors 12V71TI diesels |
|
Power, h. p. |
1920 |
|
Max speed, kts |
24 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 600(21.5) |
|
Armament |
2 x 1 - 12.7/90, 1 x (1 - 12.7/90 + 1 - 81/12 mortar) |
|
Electronic equipment |
radar |
| Complement | 20 |
Project history: US 65ft Sewart Commercial Cruiser design. Aluminium hull.
Modernizations: None.
Naval service: Both boats were transferred under the naval flag in 1987 (Coast Guard was renamed the Liberian Navy). They were lost during the civil war, fate of the boats is unknown.

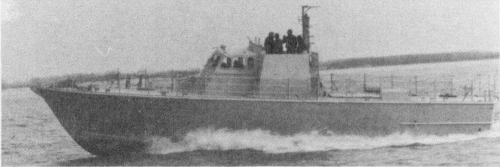

Mano 1976
