Imanta 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Imanta (ex-Harlingen) | M04 | M854 | Van der Giessen de Noord, Alblasserdam, Netherlands | 30.11.1981 | 9.7.1983 | 12.4.1984 // 18.12.2006 | in service (2020) |
| Viesturs (ex-Scheveningen) | M05 | M855 | Van der Giessen de Noord, Alblasserdam, Netherlands | 24.5.1982 | 2.12.1983 | 18.7.1984 // 5.9.2007 | in service (2020) |
| Tālivaldis (ex-Dordrecht) | M06 | M852 | Van der Giessen de Noord, Alblasserdam, Netherlands | 5.1.1981 | 26.2.1983 | 16.11.1983 // 4.4.2008 | in service (2020) |
| Visvaldis (ex-Defzijl) | M07 | M851 | Van der Giessen de Noord, Alblasserdam, Netherlands | 29.5.1980 | 29.10.1982 | 17.8.1983 // 24.10.2008 | in service (2020) |
| Rūsiņš (ex-Alkmaar) | M08 | M850 | Van der Giessen de Noord, Alblasserdam, Netherlands | 30.1.1979 | 18.5.1982 | 28.5.1983 // 8.2011 | in service (2020) |
|
Displacement standard, t |
510 |
|
Displacement normal, t |
595 |
|
Length, m |
47.1 pp 51.5 oa |
|
Breadth, m |
8.90 |
|
Draught, m |
2.47 hull 3.80 max |
|
No of shafts |
1 + 2 Schottel active rudders |
|
Machinery |
1 Werkspoor-Wärtsilä A-RUB215 V12 diesel |
|
Power, h. p. |
1900 + 240 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3000(12) |
|
Armament |
1 x 1 - 20/90 20F-2, 2x PAP-104 Mk 5 USV, OD-3 mechanical minesweeping gear |
|
Electronic equipment |
MM950 radar, DUBM-21B sonar |
|
Complement |
34 - 42 |
Project history: Former Dutch Alkmaar-class minehunters.
Modernizations: None.
Naval service: No significant events.

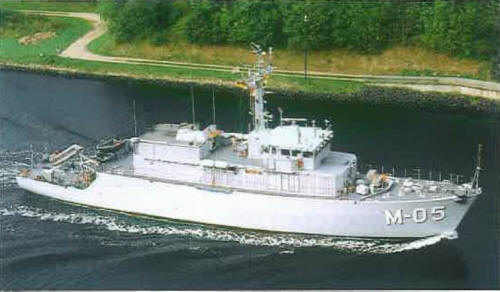

Viesturs 2014
