| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| واحد [Waheed] | Vosper Thornycroft Private, Singapore | 5/1971 | captured by Iraq 2.8.1990 (واحد [Waheed]) | ||||
| فريد [Fareed] | Vosper Thornycroft Private, Singapore | 5/1971 | captured by Iraq 2.8.1990 (فريد [Fareed]) | ||||
| رجا [Regga] | Vosper Thornycroft Private, Singapore | 11/1975 | captured by Iraq 2.8.1990 (رجا [Regga]) |
|
Displacement standard, t |
88 |
|
Displacement full, t |
170 |
|
Length, m |
27.0 |
|
Breadth, m |
6.90 |
|
Draught, m |
1.30 |
|
No of shafts |
2 |
|
Machinery |
2 Rolls-Royce C8M-410 diesels |
|
Power, h. p. |
750 |
|
Max speed, kts |
10 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1500(9) |
|
Armament |
none |
| Military load | 40 t cargo, 8 troops |
| Electronic equipment |
presumably radar |
|
Complement |
8 |
Project history: Landing craft, ordered by Ministry of Interior. Supported landing parties working on islands offshore.
Modernizations: None.
Naval service: All were captured by Iraqi forces during invasion in August 1990.

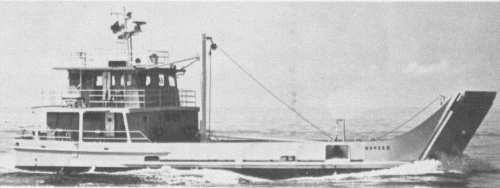

Waheed 1974
