| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| السفر [Al Saffar] | L101 | Fairey Marine, Cowes, UK | 10/1984 | captured by Iraq 2.8.1990 (السفر [Al Saffar]) | |||
| الصيف [Al Seef] | L102 | Fairey Marine, Cowes, UK | 11/1984 | captured by Iraq 2.8.1990 (الصيف [Al Seef]) | |||
| جلبت [Jalbout], 1992- السفر [Al Saffar] | L103, 1992- L403 | Fairey Marine, Cowes, UK | 9/1985 | captured by Iraq 2.8.1990 (جلبت [Jalbout]), returned, re-commissioned 1992, stricken 2016 | |||
| البلدان [Al Baldani] | L104 | Fairey Marine, Cowes, UK | 9/1985 | captured by Iraq 2.8.1990 (الصيف [Al Seef]) |
|
Displacement standard, t |
175 |
|
Displacement full, t |
420 |
|
Length, m |
33.0 |
|
Breadth, m |
10.2 |
|
Draught, m |
1.75 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3412DITA diesels |
|
Power, h. p. |
1010 |
|
Max speed, kts |
10 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1000(10) |
|
Armament |
none |
| Military load | 2 60t tanks or 150 t cargo |
| Electronic equipment |
radar |
|
Complement |
7 |
Project history: Cheverton 'Loadmaster Mk II' design. There were 50 places for seated passengers. 4m-wide bow ramp.
Modernizations: None.
Naval service: All were captured by Iraqi forces during invasion in August 1990.

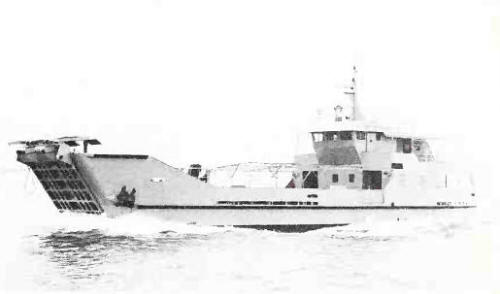

1985

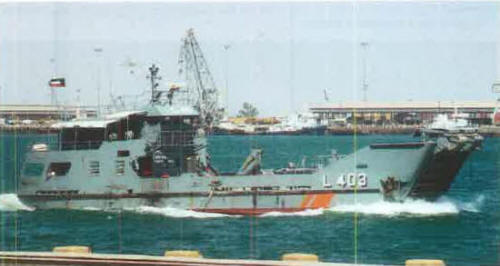

Al Saffar 2001
