Intisar 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| إنتصار [Intisar] | P301 | Transfield ASI, Jervis Bay, Australia | 20.1.1993 | in service (2020) | |||
| أمان [Aman] | P302 | Transfield ASI, Jervis Bay, Australia | 20.1.1993 | in service (2020) | |||
| ميمون [Maymoon] | P303 | Transfield ASI, Jervis Bay, Australia | 28.7.1993 | in service (2020) | |||
| مبارك [Mubarak] | P304 | Transfield ASI, Jervis Bay, Australia | 28.7.1993 | in service (2020) |
|
Displacement standard, t |
148 |
|
Displacement full, t |
165 |
|
Length, m |
27.1 pp 31.5 oa |
|
Breadth, m |
6.50 |
|
Draught, m |
2.00 |
|
No of shafts |
2 + 1 waterjet |
|
Machinery |
2 MTU 16V396 TB94 diesels + 1 MTU 8V183 TE62 diesel |
|
Power, h. p. |
5800 + 750 = 6550 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2500(12) |
|
Armament |
1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment |
2x Decca radars |
|
Complement |
11 |
Project history: ASI310 design, ordered in 1990. Carry a 5m RIB.
Modernizations: None.
Naval service: Mubarak was damaged by collision with Iraqi merchant vessel in December 2010.

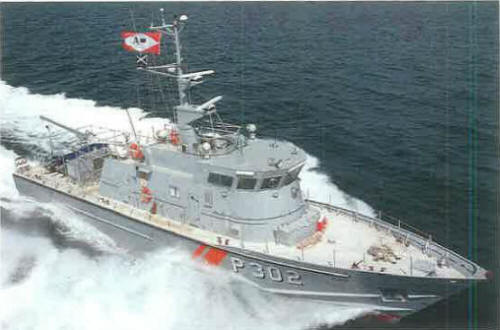

Aman 1992
