| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| الشهيد [Al Shaheed] | P305 | Océa, St. Nazaire, France | 6.1997 | 7/1997 | in service (2020) | ||
| بيان [Bayan] | P306 | Océa, St. Nazaire, France | 6.4.1999 | 25.5.1999 | in service (2020) | ||
| دسمان [Dasman] | P307 | Océa, St. Nazaire, France | 10.5.2001 | 8.6.2001 | in service (2020) |
|
Displacement standard, t |
90 |
|
Displacement full, t |
104 |
|
Length, m |
27.6 pp 33.3 oa |
|
Breadth, m |
7.00 |
|
Draught, m |
1.15 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 12V396 TE94 diesels |
|
Power, h. p. |
4400 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 360(25) |
|
Armament |
3 x 1 - 12.7/90 |
| Electronic equipment |
20V90, C252/8 radars |
|
Complement |
11 |
Project history: FPB100 design.
Modernizations: None.
Naval service: No significant events.

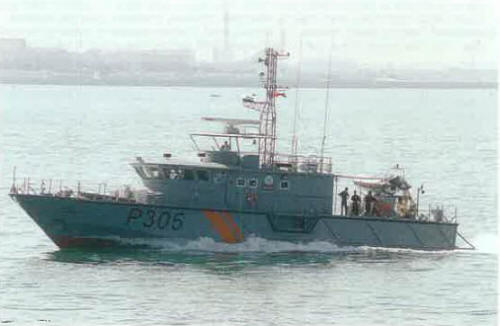

Al Shaheed 1997
