Um Almaradim 2000
Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
أم المرادم [Um Almaradim] | P3711 | CMN, Cherbourg, France | 11.1994 | 27.2.1997 | 1.8.1998 | in service (2020) | |
أوحى [Ouha] | P3713 | CMN, Cherbourg, France | 2.1995 | 29.5.1997 | 1.8.1998 | in service (2020) | |
فيلكا [Failaka] | P3715 | CMN, Cherbourg, France | 5.1995 | 4.9.1997 | 19.12.1998 | in service (2020) | |
مسكن [Maskan] | P3717 | CMN, Cherbourg, France | 8.1995 | 7.1.1998 | 19.12.1998 | in service (2020) | |
الأحمدي [Al Ahmadi] | P3719 | CMN, Cherbourg, France | 11.1995 | 2.4.1998 | 16.8.2000 | in service (2020) | |
الفحيحيل [Al Fahaheel] | P3721 | CMN, Cherbourg, France | 2.1996 | 12.6.1998 | 16.8.2000 | in service (2020) | |
اليرموك [Al Yarmouk], 2002- الصادي [Al Saadi] | P3723 | CMN, Cherbourg, France | 5.1996 | 3.3.1999 | 16.8.2000 | in service (2020) | |
جروح [Garoh] | P3725 | CMN, Cherbourg, France | 8.1996 | 4.6.1999 | 16.8.2000 | in service (2020) |
Displacement standard, t |
225 |
Displacement full, t |
250 |
Length, m |
37.5 wl 42.0 oa |
Breadth, m |
8.50 |
Draught, m |
1.90 |
No of shafts |
2 waterjets |
Machinery |
2 MTU 16V538 TB93 diesels |
Power, h. p. |
8000 |
Max speed, kts |
30 |
Fuel, t |
diesel oil 30 |
Endurance, nm(kts) | 1350(14) |
Armament |
2 x 2 Sea Skua SSM (4 Sea Skua), 1 x 6 Sadral SAM (6 Mistral) (fitted for but not installed), 1 x 1 - 40/70 Breda-Bofors Fast Forty, 1 x 1 - 20/90 F2, 2 x 1 - 12.7/90 |
Electronic equipment |
MRR-3D, 20V90, Sea Spray Mk 3 radars, Najir Mk 2 e/o system, DR-3000S1 ECM suite, 2x Dagaie Mk 2 decoy RL (fitted for but not installed), NCCS CCS |
Complement |
29 |
Project history: CMN P37BRL design, ordered in 1995. Steel hull, aluminium superstructure.
Modernizations: None.
Naval service: No significant events.

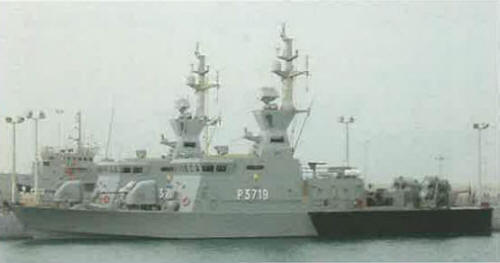

Al Ahmadi 2007
