Al Nokheta 2015
|
Names |
P2701 لنختا [Al Nokheta] P2703 بوبيان [Bubiyan] P2705 كبار [Kubbar] P2707 بيان [Bayan] P2709 الشي [Al Shoaie] P2711 السفر [Al Saffar] P2713 السيب [Al Seep] P2715 البتيل [Al Bateel] P2717 الطواش [Al Tawash P2719 ألبوم [Al Boom] |
|
Builders |
VT Halter Marine, Gulfport, USA: P2701, 2703, 2705, 2707, 2709, 2711, 2713, 2715, 2717, 2719 |
|
Commissioned |
2011: P2701 2012: P2703, 2705, 2707, 2709, 2711 2013: P2713, 2715, 2717, 2719 |
|
Losses |
none |
|
Transfers |
none |
| Discarding | in service (2020): P2701, 2703, 2705, 2707, 2709, 2711, 2713, 2715, 2717, 2719 |
|
Displacement standard, t |
57 |
|
Displacement full, t |
72 |
|
Length, m |
27.4 |
|
Breadth, m |
5.50 |
|
Draught, m |
1.50 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 12V396 TE94 diesels |
|
Power, h. p. |
4500 |
|
Max speed, kts |
50 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 550(35) |
|
Armament |
1 x 1 - 27/63 MLG-27, 2 x 1 - 12.7/90 |
| Electronic equipment |
Furuno radar |
|
Complement |
18 |
Project history: US PB Mk V type (Pegasus class), really modified Mk VC. Ordered in 2009 as replacement to Star Naja launches.
Modernizations: None.
Naval service: No significant events.

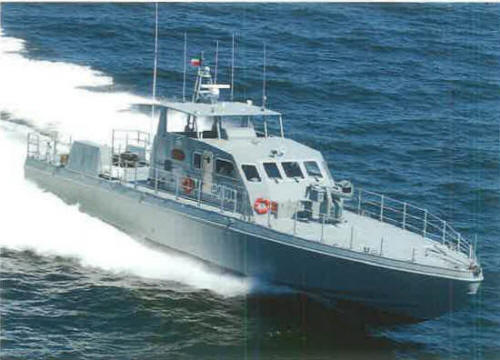

Al Noketha 2011
