REPUBLIC OF KOREA NAVY (SOUTH KOREA)

SUBMARINES

SOHN WON IL submarines (2007-)

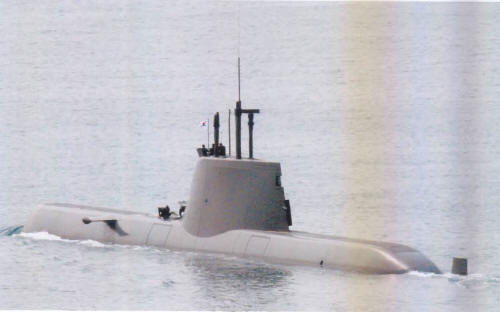

Sohn Won Il 2010

Name No Builder Laid down Launched Comp Fate
손원일 [Sohn Won Il] 072 Hyundai, Ulsan 2003 9.6.2006 27.12.2007 in service (2019)
정지 [Jeongji] 073 Hyundai, Ulsan 2004 13.6.2007 2.12.2008 in service (2019)
안중근 [Ahn Jung Geun] 075 Hyundai, Ulsan 2005 4.6.2008 30.11.2009 in service (2019)
김좌진 [Kim Jwa Jin] 076 Daewoo, Okpo 2008 13.8.2013 30.12.2014 in service (2019)
윤봉길 [Yun Bong Jil] 077 Hyundai, Ulsan 2009 3.7.2014 20.6.2016 in service (2019)
유관순 [Yu Gwan Sun] 078 Daewoo, Okpo 2010 8.5.2015 10.7.2017 in service (2019)
홍범도 [Hong Beon Do] 079 Hyundai, Ulsan 2011 5.4.2016 19.1.2018 in service (2019)
이범석 [Lee Beom Seok] 081 Daewoo, Okpo 2012 8.11.2016 2019 building (2019)
신돌석 [Shin Dol Seok] 082 Hyundai, Ulsan 2013 7.9.2017 2019 building (2019)


Displacement standard, t



Displacement normal, t

1700 / 1860

Length, m

65.3

Breadth, m

6.30

Draught, m

6.00

No of shafts

1

Machinery

2 MTU 16V396 diesel-generators, 1 Siemens Permasyn electric motor / 2 BZM120 fuel cell modules (AIP)

Power, h. p.

2700 / 3875 / 326

Max speed, kts

12 / 21

Fuel, t

diesel oil

Endurance, nm(kts)

7900(8) / 420(8) / 1248(4)

Armament

8 - 533 TT (bow, 16, inc. Sub-Harpoon SSM (4 UGM-84C instead of 4 torpedoes), Baeksangeo)

Electronic equipment

Sphinx-D radar, IDRS sonar suite, LIG Next 1 ECM suite, TACM torpedo decoy launcher, ISUS 90-61 CCS

Complement

27

Diving depth operational, m 400 (max.)

Project history: Type 214 (KSS II). The design was selected in 2000. The submarines are being built in South Korea with the technical assistance of Germany's Howaldtswerke. The Type 214 design is based on the Type 212 and an enhanced Type 209, with the air-independent propulsion and other export-approved systems derived from the German-Italian Type 212 submarine. Inner and outer hulls are of austenitic steel. The submarines have 10% reserve buoyancy. Maximum diving depth is 400 meters. Have the hydrogen peroxide Siemens Polymer Electrolite Membrane (PEM) fuel-cell an-independent auxiliary propulsion system. Employ the STN Atlas Elektronik ISUS 90 combat data system. The sonar array includes cylindrical MF passive array forward, an MF/LF passive flank system (with three arrays per side), a towed LF passive array, an active ranging set and a bow-mounted active mine-avoidance set. Four of the eight weapons tubes have expulsion systems to enable launching antiship missiles, the others will be of the swim-out variety.

Modernizations: None.

Naval service: No significant events.
