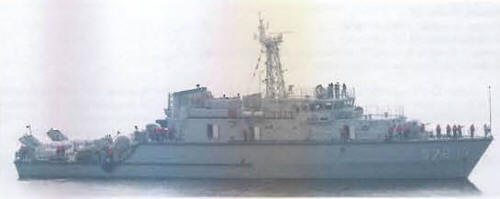

Yangyang 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 양양 [Yangyang] | 571 | Kangnam Swallow Craft | 25.2.1999 | 29.12.1999 | in service (2019) | ||
| 옹진 [Ongjin] | 572 | Kangnam Swallow Craft | 28.12.2002 | 28.10.2003 | in service (2019) | ||
| 해남 [Haenam] | 573 | Kangnam Swallow Craft | 18.2.2004 | 12.11.2004 | in service (2019) |
|
Displacement standard, t |
730 |
|
Displacement full, t |
880 |
|
Length, m |
59.4 |
|
Breadth, m |
10.5 |
|
Draught, m |
3.00 |
|
No of shafts |
2 Voith-Schneider |
|
Machinery |
2 MTU diesels |
|
Power, h. p. |
4000 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
3000(12) |
|
Armament |
1 x 3 - 20/76 Sea Vulcan, 2 x 1 - 7.6/90, 2x Pluto Plus USV, fitted for mechanical and acoustic-magnetic minesweeping gear |
|
Electronic equipment |
Raytheon radar, type 2093 sonar, TSM 2061 Mk 3 CCS |
| Complement | 61 |
Project history: Combination minehunters/minesweepers, enlarged type SK5000. GRP hull.
Modernizations: None.
Naval service: No significant events.
Ongjin 2008
