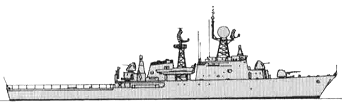

Wonsan 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 원산 [Wonsan] | 560 | Hyundai, Ulsan | 12.1994 | 9.1996 | 9.1997 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
3300 |
|
Length, m |
103.8 |
|
Breadth, m |
15.0 |
|
Draught, m |
3.40 |
|
No of shafts |
2 |
|
Machinery |
4 SEMT-Pielstick 12PA6 diesels |
|
Power, h. p. |
19200 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
4500(15) |
|
Armament |
1 x 1 - 76/62 OTO-Melara Compact, 2 x 2 Breda-Bofors Vespa, 2 x 3 - 324 Mk 32 TT, 300 mines, helicopter deck |
| Military load | 1 LCVP |
|
Electronic equipment |
DA-05, S 1810, SPS-10, 2x ST 1802, SPS-64(v) radars, PHS-32 sonar, ULQ-11K ECM suite, 2x Dagaie decoy RL |
| Complement |
160 |
Project history: In addition to minelaying, is able to act as a minehunter and as a training ship and ASW escort. Has a helicopter landing platform aft for aircraft up to CH-53E size, an extensive EW suite, and optronic backup directors for guns. Carries an LCVP landing craft to port.
Modernizations: None.
Naval service: No significant events.

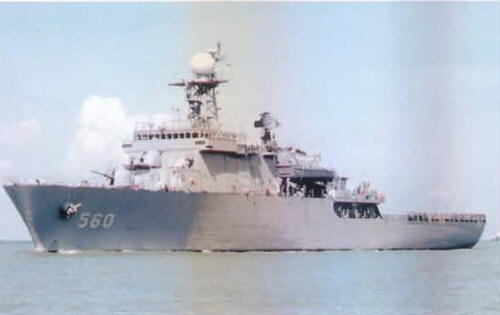

Wonsan 2004
