| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 남포 [Nampo] | 570 | Hyundai, Ulsan | 2013 | 27.5.2015 | 16.6.2017 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
4240 |
|
Length, m |
114.3 |
|
Breadth, m |
17.2 |
|
Draught, m |
4.60 |
|
No of shafts |
2 |
|
Machinery |
4 MTU 16V1163 diesels |
|
Power, h. p. |
28300 |
|
Max speed, kts |
23 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
4500(13) |
|
Armament |
4 x 4 ESSM SAM (VLs, 16 RIM-162A), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 3 - 324 Mk 32 TT, 300 mines, 1 helicopter (Lynx) |
|
Electronic equipment |
SPS-550K, CEROS, surface search, navigation radars, sonar, 2x MASS decoy RL, 2x SLQ-261K torpedo decoy RL |
| Complement |
Project history: Modified Wonsan design, MLS-II.
Modernizations: None.
Naval service: No significant events.

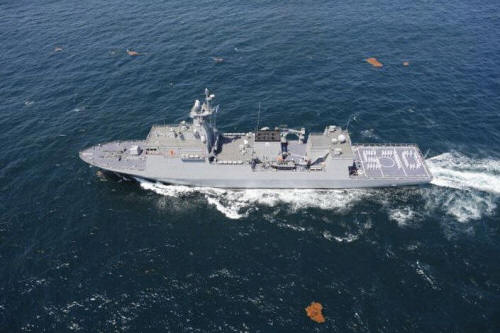

Nampo 2017
