Ganggyeong 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 강경 [Ganggyeong] | 561 | Kangnam Swallow Craft | 30.8.1986 | 19.12.1986 | in service (2019) | ||
| 강진 [Gangjin] | 562 | Kangnam Swallow Craft | 27.10.1990 | 31.5.1991 | in service (2019) | ||
| 고령 [Goryeong] | 563 | Kangnam Swallow Craft | 14.1.1991 | 30.11.1991 | in service (2019) | ||
| 김포 [Gimpo] | 565 | Kangnam Swallow Craft | 29.9.1992 | 30.4.1993 | in service (2019) | ||
| 고창 [Gochang] | 566 | Kangnam Swallow Craft | 30.3.1993 | 29.10.1993 | in service (2019) | ||
| 김화 [Kumhwa] | 567 | Kangnam Swallow Craft | 1.8.1993 | 1.5.1994 | in service (2019) |
|
Displacement standard, t |
470 |
|
Displacement full, t |
520 |
|
Length, m |
50.0 |
|
Breadth, m |
9.60 oa 8.31 wl |
|
Draught, m |
2.60 |
|
No of shafts |
2 Voith-Schneider |
|
Machinery |
2 MTU diesels |
|
Power, h. p. |
1800 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
2500(12) |
|
Armament |
1 x 1 - 20/70 Mk 10, 2 x 1 - 7.6/90, 2x Pluto USV |
|
Electronic equipment |
SPS-64(v) radar, type 193M, type 2048 sonars |
| Complement | 48 (inc. 4 divers) |
Project history: Design based on the Italian Lerici class. GRP hull.
Modernizations: None.
Naval service: No significant events.

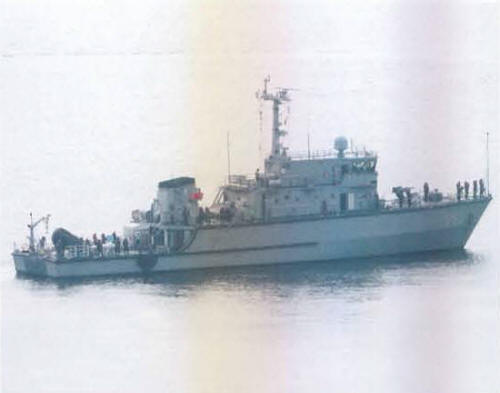

Ganggyeong 2008
