LSF621 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 솔개 621 [Solgae 621] | LSF621 | Khabarovsk SYd, Russia | 24.4.2004 | 22.8.2005 | 29.9.2005 | in service (2019) | |
| 솔개 622 [Solgae 622] | LSF622 | Khabarovsk SYd, Russia | 27.11.2004 | 29.9.2006 | 15.10.2006 | in service (2019) | |
| 솔개 623 [Solgae 623] | LSF623 | Khabarovsk SYd, Russia | 4.2005 | 2006 | 30.12.2006 | in service (2019) |
|
Displacement standard, t |
132 |
|
Displacement normal, t |
150 |
|
Length, m |
31.3 |
|
Breadth, m |
12.9 hull 14.8 oa |
|
Draught, m |
1.60 / 0.00 |
|
No of shafts |
2 air propellers |
|
Machinery |
2 MT-70K gas turbines for lift and propulsion |
|
Power, h. p. |
20000 |
|
Max speed, kts |
55 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
200(50) (loaded) 500(50) (light) |
|
Armament |
1 x 4 Igla-1 SAM (16 9K310), 2 x 6 - 30/54 AK-306, 2 x 1 - 30 BP-30 Plamia grenade launchers, 10 - 24 mines |
|
Military load |
1 main battle tank or 2 light tanks or APC or 130 troops or 42 t of cargo |
|
Electronic equipment |
Lazur', MR-244-1 Ekran-1 radars |
|
Complement |
12 |
Project history: Russian Project 12061 Murena.
Modernizations: None.
Naval service: No significant events.

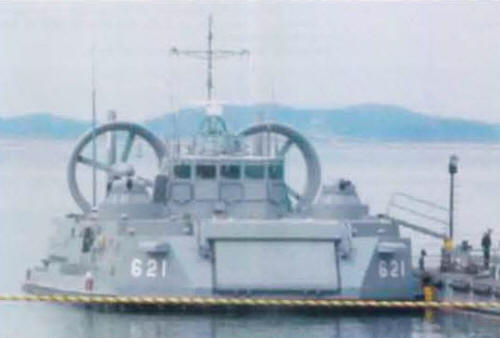

621 2006
