Gojun Bong 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 고준봉 [Gojun Bong] | 681 | Korea-Tacoma, Masan | 4.9.1992 | 1.7.1993 | in service (2019) | ||
| 비로봉 [Biro Bong] | 682 | Korea-Tacoma, Masan | 18.12.1996 | 30.11.1997 | in service (2019) | ||
| 향로봉 [Hyangro Bong] | 683 | Korea-Tacoma, Masan | 30.10.1998 | 30.8.1999 | in service (2019) | ||
| 성인봉 [Sungin Bong] | 685 | Korea-Tacoma, Masan | 4.3.1999 | 1.12.1999 | in service (2019) |
|
Displacement standard, t |
1900 |
|
Displacement full, t |
4200 |
|
Length, m |
106.9 pp 112.50 oa |
|
Breadth, m |
15.3 |
|
Draught, m |
3.00 |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 16PA6 V280 diesels |
|
Power, h. p. |
12800 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4500(12) |
|
Armament |
681: 2 x 2 - 30/75 Emerlec EX-30, 2 x 3 - 20/76 Sea Vulcan, 4 x 1 - 12.7/90, helicopter deck 682, 683, 685: 1 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 3 - 20/76 Sea Vulcan, 4 x 1 - 12.7/90, helicopter deck |
| Military load |
4 LCVP, (12 tanks, 14 AAAV) or 1800 t cargo, 200 troops |
|
Electronic equipment |
2x SPS-64 radars, NA-18 e/o system, ECM suite, 1x Dagaie decoy RL |
|
Complement |
120 |
Project history: Replacements for the WWII-era LSTs. Have a helicopter deck aft and resemble LSTs built in South Korea for Venezuela and Indonesia, except that they have a drive-through tank deck and stern ramp. Are able to carry up to 1800t of cargo (690 maximum beaching load) and about 200 troops; up to 17 main battle tanks can be accommodated. The articulating bow ramp extends to 14.5m and is 4.5m wide; the articulating stern ramp extends to 10.9m and is 4.9m wide. A 6.1m-diameter turntable is fitted at the forward end of the tank deck, and there is a 9x4m elevator to the upper deck.
Modernizations: None.
Naval service: No significant events.

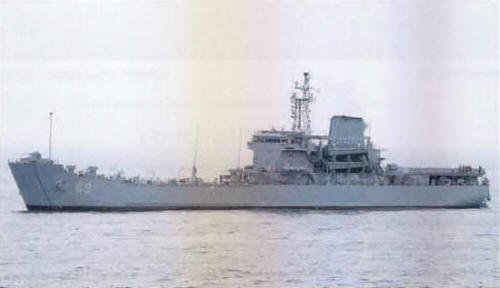

Hyangro Bong 2008
