REPUBLIC OF KOREA NAVY (SOUTH KOREA)

ESCORTS

POHANG corvettes (1984-1993)

Pohang 2000

Andong 2010

Name No Yard No Builder Laid down Launched Comp Fate
포항 [Pohang] 756   Korea SB, Pusan   7.2.1984 18.12.1984 stricken 6.2009
군산 [Gunsan] 757   Korea Takoma, Masan   27.3.1984 30.11.1984 stricken 9.2011
경주 [Guengju] 758   Hyundai, Ulsan   8.6.1984 1.5.1985 to Peru 12.2014 (Ferré)
목포 [Mokpo] 759   Daewoo, Okpo   12.10.1984 17.5.1985 stricken 12.2014
김천 [Gimcheon] 761   Korea SB, Pusan   29.11.1985 31.8.1986 stricken 12.2015, to Vietnam (HQ-18)
충주 [Chungju] 762   Korea Tacoma, Masan   24.1.1986 30.9.1986 stricken 12.2016, to Philippines (Conrado Yap)
진주 [Jinju] 763   Hyundai, Ulsan   12.2.1986 29.10.1986 stricken 12.2016, to Egypt (كوريا الجنوبية [Shahab Misr])
여수 [Yeosu] 765   Daewoo, Okpo   14.6.1986 28.11.1986 stricken 12.2017, to Vietnam (HQ-20)
진해 [Jinhae] 766   Korea SB, Pusan   18.3.1987 2.7.1988 stricken 12.2017
순천 [Suncheon] 767   Korea Tacoma, Masan   3.4.1987 30.7.1988 in service (2019)
이리 [Iri], 2.1999- 익산 [Iksan] 768   Hyundai, Ulsan   24.3.1987 13.9.1988 stricken 12.2018
원주 [Wonju] 769   Daewoo, Okpo   23.10.1987 29.9.1988 in service (2019)
안동 [Andong] 771   Korea SB, Pusan   28.5.1988 29.12.1988 in service (2019)
천안 [Cheonan] 772   Korea SB, Pusan   24.7.1987 30.12.1988 sunk 26.3.2010
성남 [Seongnam] 773   Daewoo, Okpo   30.12.1988 28.4.1989 in service (2019)
부천 [Bucheon] 775   Hyundai Ulsan   11.12.1987 3.5.1989 in service (2019)
제천 [Jecheon] 776   Korea Tacoma, Masan   8.12.1987 3.5.1989 in service (2019)
대천 [Daecheon] 777   Hyundai, Ulsan   22.1.1988 28.4.1988 in service (2019)
속초 [Sokcho] 778   Hyundai, Ulsan   7.7.1989 28.2.1990 in service (2019)
영주 [Yeongju] 779   Hyundai, Ulsan   27.7.1988 31.3.1990 in service (2019)
남원 [Namwon] 781   Daewoo, Okpo   17.10.1989 30.4.1990 in service (2019)
광명 [Gwangmyeong] 782   Korea Tacoma, Masan   27.10.1989 30.6.1990 in service (2019)
신성 [Sinseong] 783   Korea SB, Pusan   8.10.1991 28.3.1992 in service (2019)
공주 [Gongju] 785   Korea Tacoma, Masan   21.9.1992 31.7.1993 in service (2019)


Displacement standard, t

950

Displacement full, t

1220

Length, m

83.5 wl 88.3 oa

Breadth, m

10.2

Draught, m

2.88 mean hull

No of shafts

2

Machinery

CODOG: 1 General Electric LM-2500 gas turbine / 2 MTU 12V956 TB82 diesels

Power, h. p.

27200 / 6260

Max speed, kts

32

Fuel, t

diesel / gas turbine oil

Endurance, nm(kts) 4000(15)

Armament

756-759: 2 x 1 MM38 Exocet SSM (2 MM38), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 2 - 30/75 Emerlec EX-30, 2 x 3 - 324 Mk 32 TT, 2 DCR(12)

761-763, 765: 2 x 1 - 76/62 OTO-Melara Compact, 2 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 3 - 324 Mk 32 TT, 2 DCR(12)

766-769, 771-773, 775-779, 781-783, 785: 2 x 2 Harpoon SSM (4 RGM-84C), 2 x 1 - 76/62 OTO-Melara Compact, 2 x 2 - 40/70 Breda-Bofors Vespa, 2 x 3 - 324 Mk 32 TT, 2 DCR(12)

Electronic equipment

756-759: SPS-64(v), WM-28 radars, LIROD e/o director, EDO 768 sonar, ULQ-12K ECM suite, 2x Mk 36 SRBOC decoy RL, SEWACO ZK CCS

761-763, 765: SPS-64(v), WM-28 radars, LIROD e/o director, PHS-32 sonar, ULQ-12K ECM suite, 4x Protean decoy RL, WSA 423 CCS

766-769, 771-773, 775-779, 781-783, 785: SPS-64(v), ST 1802, S 1810 radars, Radamec 2400 e/o system, PHS-32 sonar, ULQ-12K ECM suite, 4x Protean decoy RL, WSA 423 CCS

Complement

95

Project history: Small fast general purpose corvettes designed in Korea and titled with off-the-shelf Western equipment and armament. Have broad superstructure amidships. Class was sometimes called KCX.

Modernizations: 2010s, Andong: - 2 x 2 Harpoon SSM; + 2 x 2 Hae Song SSM (4) (temporarily for tests)

2010s, almost all: + 2x TACM torpedo decoy launchers

Naval service: Cheonan was torpedoed by North-Korean midget submarine 26.3.2010 off Baengnyeong Island in the Yellow Sea.

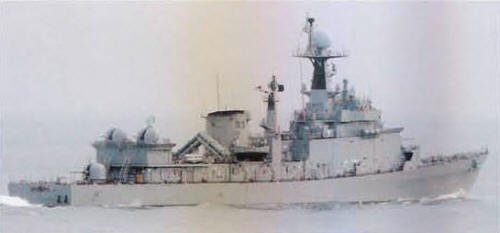

Gunsan 2008

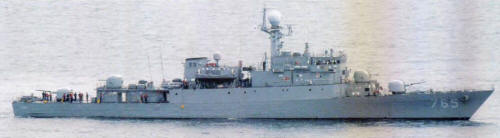

Yeosu 2008

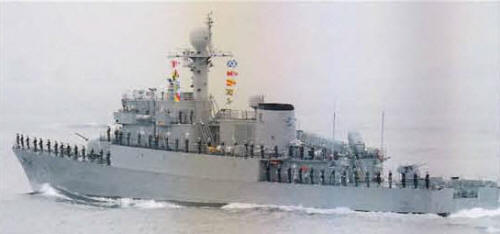

Chungju 2008
