Donghae 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 동해 [Donghae] | 751 | Korea SB, Pusan | 18.11.1982 | 10.11.1983 | stricken 6.2009 | ||
| 수원 [Suwon] | 752 | Korea Takoma, Masan | 18.12.1982 | 20.11.1983 | stricken 6.2010 | ||
| 강릉 [Gangneung] | 753 | Hyundai, Ulsan | 14.5.1983 | 21.12.1983 | stricken 6.2010 | ||
| 안양 [Anyang] | 755 | Daewoo SME, Okpo | 15.6.1983 | 21.12.1983 | stricken 9.2011, to Colombia (Nariño) |
|
Displacement standard, t |
800 |
|
Displacement full, t |
1076 |
|
Length, m |
78.5 |
|
Breadth, m |
10.0 |
|
Draught, m |
2.60 mean hull |
|
No of shafts |
2 |
|
Machinery |
CODOG: 1 General Electric LM-2500 gas turbine / 2 MTU 12V956 TB82 diesels |
|
Power, h. p. |
27800 / 6240 |
|
Max speed, kts |
31 |
|
Fuel, t |
diesel / gas turbine oil |
| Endurance, nm(kts) | 4000(15) |
|
Armament |
1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 40/60 Mk 1 Mod.2, 2 x 2 - 30/75 Emerlec EX-30, 2 x 3 - 324 Mk 32 TT, 2 DCR(12) |
|
Electronic equipment |
SPS-64(v), WM-28 radars, LIOD e/o director, EDO 768 sonar, ULQ-12K ECM suite, 2x Mk 34 RBOC II decoy RL |
|
Complement |
95 |
Project history: First indigenious large combat ship design. Ships proved too small for their designed duties and only four were built. Previously two SSM launchers were planned to be installed at the place of old twin WW-II era Bofors.
Modernizations: None.
Naval service: No significant events.

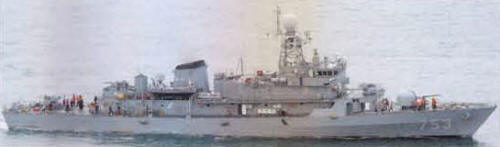

Gangneung 2008
