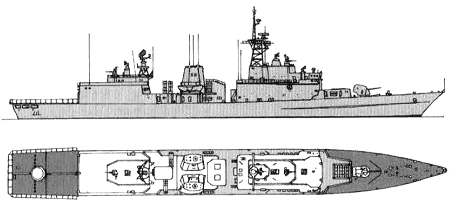

Gwanggaeto Daewang 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 광개토대왕 [Gwanggaeto Daewang] | 971 | Daewoo, Okpo | 7/1995 | 28.10.1996 | 24.7.1998 | in service (2019) | |
| 을지문덕 [Uljimundok] | 972 | Daewoo, Okpo | 1/1996 | 16.10.1997 | 20.6.1999 | in service (2019) | |
| 양만춘 [Yangmanchun] | 973 | Daewoo, Okpo | 8/1997 | 19.10.1998 | 29.6.2000 | in service (2019) |
|
Displacement standard, t |
3500 |
|
Displacement full, t |
3900 |
|
Length, m |
135.4 |
|
Breadth, m |
14.2 |
|
Draught, m |
4.30 (hull) |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 General Electric LM-2500 gas turbines / 2 MTU 20V956 TB92 diesels |
|
Power, h. p. |
59000 / 8000 |
|
Max speed, kts |
30 / 18 |
|
Fuel, t |
gas turbine / diesel oil |
|
Endurance, nm(kts) |
4000(18) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84C), 1 x 16 Sea Sparrow SAM (VLS, 16 RIM-7M), 1 x 1 - 127/54 OTO-Melara Compact, 2 x 7 - 30/77 Goalkeeper, 2 x 3 - 324 TT, 2 helicopters (Super Lynx) |
|
Electronic equipment |
SPS-49(v)5, SPS-55M, MW-08, 2x STIR 1.8, 2x Goalkeeper radars, Radamec e/o system, DSQS-21BZ sonar, APECS-II / AR-700 ECM suite, 2x Dagaie decoy RL, SLQ-25 Nixie torpedo decoy, KDCOM 1 CCS |
|
Complement |
185 |
Project history: Project KDX-I. Totals as high as 17-20 had originally been planned, but only three were built. Have a constant-pressure sealed NBC warfare protective citadel.
Modernizations: mid-2010s, all: - SPS-55M radar; + DTR-92 (SPS-95K) radar, 2x SLQ-261K torpedo decoy launchers (TACM system)
Naval service: No significant events.

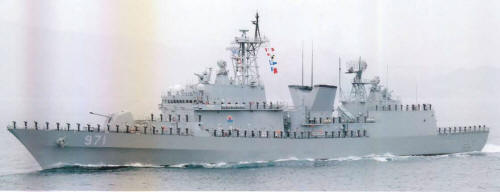

Gwanggaeto Daewang 2008
