Chungmu 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 충무 [Chungmu] (ex-Erben) | 91, 1980- 911 | Bath Iron Wks, USA | 10.1942 | 21.3.1943 | 5/1943 // 16.5.1963 | training vessel 1983 | |
| 서울 [Seoul] (ex-Halsey Powell) | 92, 1980- 912 | Bethlehem, Staten I, Port Richmond, USA | 2.1943 | 30.6.1943 | 10/1943 // 27.4.1968 | stricken 1982 | |
| 부산 [Pusan] (ex-Hickox) | 93, 1980- 913 | Federal, Kearny, USA | 3/1943 | 4.7.1943 | 9/1943 // 15.11.1968 | stricken 1989 |
|
Displacement standard, t |
2325 - 2276 |
|
Displacement full, t |
2924 - 3005 |
|
Length, m |
112.5 wl 114.7 oa |
|
Breadth, m |
12.1 |
|
Draught, m |
4.19 full load |
|
No of shafts |
2 |
|
Machinery |
2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
35 |
|
Fuel, t |
oil 492 |
| Endurance, nm(kts) | 5000 (15) |
|
Armament |
91, 93: 5 x 1 - 127/38 Mk 30, 2 x 4 - 40/60 Mk 2, 1 x 2 - 40/60 Mk 1, 2 x 3 - 324 TT, 2 x 24 - 178 Hedgehog Mk 10.11 ASWRL, 2 DCR 92: 5 x 1 - 127/38 Mk 30, 2 x 4 - 40/60 Mk 2, 2 x 3 - 324 TT, 2 x 24 - 178 Hedgehog Mk 10.11 ASWRL, 2 DCR |
|
Electronic equipment |
SPS-6C, SPS-10, Mk 25 radars, SQS-4 sonar, WLR-1 ECM suite |
|
Complement |
250 |
Project history: Former USN Fletcher class destroyers. Bought 31.1.1977.
Modernizations: None.
Naval service: No significant events.

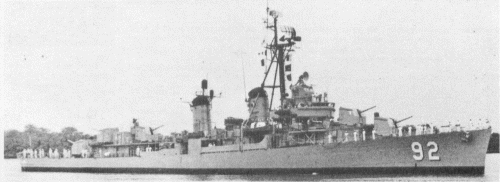

Seoul 1968
