Taepungyang 5 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 태평양 3 [Taepungyang 3] | 3003 | Hanjin, Pusan | 2003 | in service (2019) | |||
| 태평양 5 [Taepungyang 5] | 3005 | Hanjin, Pusan | 2004 | in service (2019) | |||
| 태평양 6 [Taepungyang 6] | 3006 | Hanjin, Pusan | 20.12.2005 | in service (2019) | |||
| 태평양 7 [Taepungyang 7] | 3007 | Hanjin, Pusan | 28.8.2006 | in service (2019) | |||
| 태평양 8 [Taepungyang 8] | 3008 | Hanjin, Pusan | 23.3.2008 | in service (2019) |
|
Displacement standard, t |
3000 |
|
Displacement full, t |
3900 |
|
Length, m |
111.0 pp 116.0 oa |
|
Breadth, m |
15.4 |
|
Draught, m |
4.90 |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 16PA6 BSTC2LA diesels |
|
Power, h. p. |
17600 |
|
Max speed, kts |
21 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4500(15) |
|
Armament |
1 x 3 - 20/76 Sea Vulcan, 6 x 1 - 12.7/90, 1 helicopter (AS-565) |
|
Electronic equipment |
2x radars |
|
Complement |
120 |
Project history: Improved variant of the Taepyeongyang 2 class. Are equipped for firefighting, ocean patrol, rescue, and salvage duties.
Modernizations: None.
Naval service: No significant events.

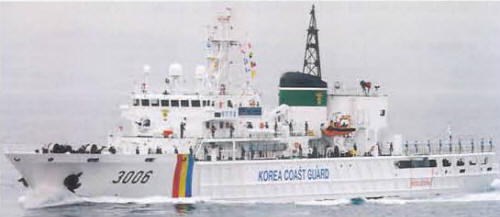

Taepungyang 6 2008
