REPUBLIC OF KOREA NAVY (SOUTH KOREA)

NON-NAVAL FORCES

SEOMJINGANG patrol ship (1999)

Name No Yard No Builder Laid down Launched Comp Fate
한강 6 섬진강 [Hangang 6 Seomjingang] 1006   Daewoo, Okpo   22.1.1999 20.6.1999 in service (2019)


Displacement standard, t



Displacement full, t

1630

Length, m

84.0

Breadth, m

10.4

Draught, m

3.60

No of shafts

2

Machinery

2 Wärtsilä-Nohab 16V25 diesels

Power, h. p.

10000

Max speed, kts

21

Fuel, t

diesel oil

Endurance, nm(kts) 4000(18)

Armament

1 x 3 - 20/76 Sea Vulcan, 4 x 1 - 7.6/90

Electronic equipment

2x radars

Complement

57

Project history: Intended for seagoing patrol, salvage, and rescue duties.

Modernizations: None.

Naval service: No significant events.

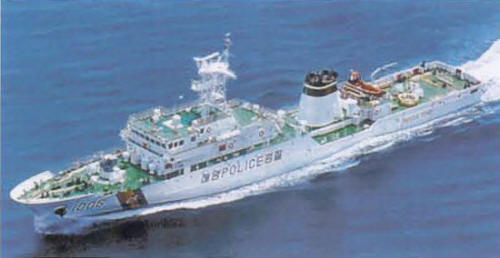

Seomjingang 2006
