| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 삼봉호 [Samyeonho] | 5001 | Hyundai, Ulsan | 23.4.2002 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
6350 |
|
Length, m |
145.5 |
|
Breadth, m |
16.5 |
|
Draught, m |
5.50 |
|
No of shafts |
2 |
|
Machinery |
2 MTU diesels |
|
Power, h. p. |
23580 |
|
Max speed, kts |
23 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 7300(15) |
|
Armament |
2 x 3 - 20/76 Sea Vulcan, 1 helicopter (Ka-28) |
|
Electronic equipment |
2x radars |
|
Complement |
97 |
Project history: Enlarged version of the Taepyeongyang 2-class tenders.
Modernizations: None.
Naval service: No significant events.

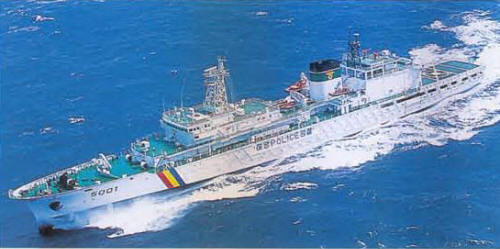

Samyeonho 2006
