Taeguk 1 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 태극 1 [Taeguk 1] | 501 | Hanjin, Chinhae | 25.12.1978 | stricken 2008 | |||
| 태극 2 [Taeguk 2] | 502 | Hanjin, Chinhae | 1979 | stricken 2008 | |||
| 태극 3 [Taeguk 3] | 503 | Hanjin, Chinhae | 5.5.1979 | stricken 2008 | |||
| 태극 5 [Taeguk 5] | 505 | Korea SB, Pusan | 31.5.1980 | stricken 2009 | |||
| 태극 6 [Taeguk 6] | 506 | Hyundai, Ulsan | 28.9.1981 | stricken 2009 | |||
| 태극 7 [Taeguk 7] | 507 | Hanjin, Chinhae | 31.7.1982 | stricken 2009 |
|
Displacement standard, t |
410 |
|
Displacement full, t |
500 |
|
Length, m |
60.8 |
|
Breadth, m |
8.00 |
|
Draught, m |
2.29 |
|
No of shafts |
2 |
|
Machinery |
PC501, 502, 505-507: 2 Niigata-Pielstick 12PA6 V280 diesels PC503: 2 Wärtsilä-Nohab diesels |
|
Power, h. p. |
PC501, 502, 505-507: 9600 PC503: 10880 |
|
Max speed, kts |
24 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2400(20) |
|
Armament |
1 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 10, 2 x 1 - 7.6/90 |
|
Electronic equipment |
2x radars |
|
Complement |
39 |
Project history: Intended for rescue and inspection duties.
Modernizations: None.
Naval service: No significant events.

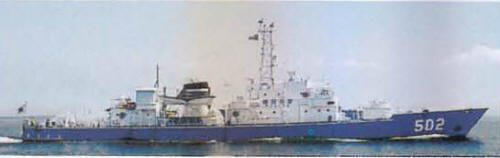

Taeguk 2 2006
