REPUBLIC OF KOREA NAVY (SOUTH KOREA)

NON-NAVAL FORCES

JAEMIN 1 patrol ship (1988)

Name No Yard No Builder Laid down Launched Comp Fate
제민 1 [Jaemin 1] 1501   Daewoo, Okpo   28.12.1987 26.5.1988 in service (2019)


Displacement standard, t



Displacement full, t

2200

Length, m

77.6

Breadth, m

13.5

Draught, m

4.20

No of shafts

2

Machinery

2 MTU 16V1163 TB62 diesels

Power, h. p.

8000

Max speed, kts

18

Fuel, t

diesel oil

Endurance, nm(kts) 4500(12)

Armament

1 x 3 - 20/76 Sea Vulcan

Military load 2 LCVP

Electronic equipment

2x radars

Complement

92

Project history: Modeled after the USN Bolster class but is much larger. Has telescoping hydraulic cranes fore and aft. Can lay and recover a four-point mooring. Carries two LCVP-type workboats. Equipped for ocean towing. Hull sides are heavily reinforced with rubbing strakes.

Modernizations: None.

Naval service: No significant events.

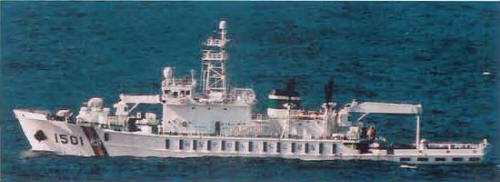

Jaemin 1 2000
