| Name | No | Builder | Laid down | Launched | Comp | Fate |
| 이청호 [Icheongho] | 5002 | Hyundai, Ulsan | 3.12.2015 | 30.5.2016 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
6500 |
|
Length, m |
150.5 |
|
Breadth, m |
16.5 |
|
Draught, m |
5.50 |
|
No of shafts |
2 |
|
Machinery |
4 MTU 20V1163 M94 diesels |
|
Power, h. p. |
39600 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 9000 |
|
Armament |
1 x 1 - 76/62 OTO-Melara Compact, 1 x 3 - 20/76 Sea Vulcan, 1 helicopter (Ka-28) |
|
Electronic equipment |
2x radars |
|
Complement |
104 + 36 passengers |
Project history: Large patrol ship. Auxiliary propulsion plant consists of two 750kW electric motors.
Modernizations: None.
Naval service: No significant events.

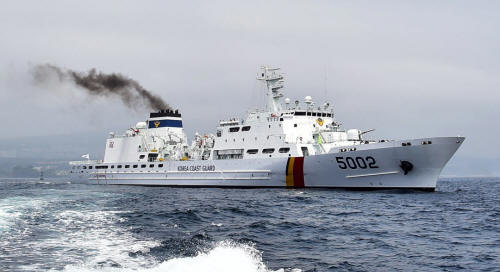

Icheongho 2016
