Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
해누리 5 [Hannuri 5] | 105 | Hyundai, Ulsan | 1997 | in service (2019) | |||
해누리 13 [Hannuri 13] | 113 | Hyundai, Ulsan | 1997 | in service (2019) | |||
해누리 18 [Hannuri 18] | 118 | Hyundai, Ulsan | 1997 | in service (2019) | |||
해누리 21 [Hannuri 21] | 121 | Hyundai, Ulsan | 1997 | in service (2019) | |||
해누리 25 [Hannuri 25] | 125 | Hyundai, Ulsan | 1998 | in service (2019) |
Displacement standard, t |
|
Displacement full, t |
110 |
Length, m |
32.2 |
Breadth, m |
6.00 |
Draught, m |
1.40 |
No of shafts |
2 |
Machinery |
2 diesels |
Power, h. p. |
|
Max speed, kts |
25 |
Fuel, t |
diesel oil |
Endurance, nm(kts) | |
Armament |
1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 |
Electronic equipment |
Furuno radar |
Complement |
19 |
Project history: 100t class.
Modernizations: None.
Naval service: No significant events.

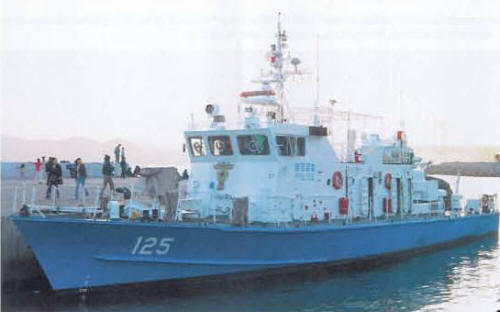

Hannuri 25 2008
