REPUBLIC OF KOREA NAVY (SOUTH KOREA)

NON-NAVAL FORCES

HANNURI 27 patrol boats (1998-2003)

Name No Builder Laid down Launched Comp Fate
해누리 27 [Hannuri 27] 127 Sam Kwang SB, Incheon   8.1997 1998 in service (2019)
해누리 28 [Hannuri 28] 128 Sam Kwang SB, Incheon     1998-2001 in service (2019)
해누리 29 [Hannuri 29] 129 Sam Kwang SB, Incheon     1998-2001 in service (2019)
해누리 30 [Hannuri 30] 130 Sam Kwang SB, Incheon   9.2001 2001 in service (2019)
해누리 31 [Hannuri 31] 131 Sam Kwang SB, Incheon   9.2001 2001 in service (2019)
해누리 32 [Hannuri 32] 132 Sam Kwang SB, Incheon     2003 in service (2019)
해누리 33 [Hannuri 33] 133 Sam Kwang SB, Incheon     2003 in service (2019)


Displacement standard, t

100

Displacement full, t

120

Length, m

33.0 pp 35.0 oa

Breadth, m

6.00

Draught, m

1.47

No of shafts

2

Machinery

2 MTU diesels

Power, h. p.

7930

Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts) 700

Armament

1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90

Electronic equipment

Furuno radar

Complement

15

Project history: 100t class.

Modernizations: None.

Naval service: No significant events.

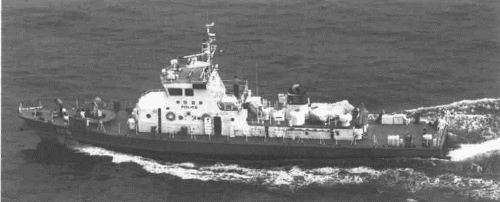

Hannuri 28 2008
