REPUBLIC OF KOREA NAVY (SOUTH KOREA)

NON-NAVAL FORCES

HANGANG 5 patrol ship (1985)

Name No Yard No Builder Laid down Launched Comp Fate
한강 5 [Hangang 5] 1005   Korea SB, Pusan 1984   12/1985 stricken 2015


Displacement standard, t

980

Displacement full, t

1150

Length, m

87.8

Breadth, m

10.0

Draught, m

2.36

No of shafts

2

Machinery

CODOG: 1 General Electric LM-2500 gas turbine / 2 MTU 12V956 TB82 diesels

Power, h. p.

27800 / 12520

Max speed, kts

31

Fuel, t

diesel / gas turbine oil

Endurance, nm(kts) 4000(15)

Armament

1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/60 Mk 3, 2 x 3 - 20/76 Sea Vulcan

Electronic equipment

SPS-64(v), WM-28 radars, Radamec 2400 e/o system

Complement

72

Project history: A lower-powered and more lightly armed version of the Pohang-class frigates built for the navy.

Modernizations: None.

Naval service: No significant events.

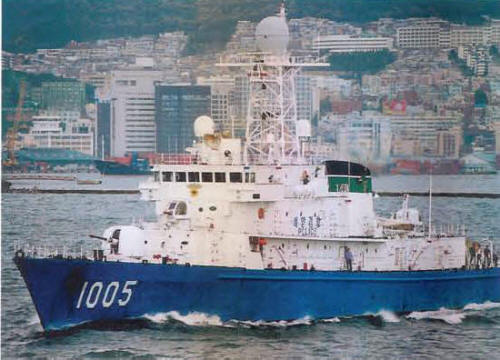

Hangang 5 2006
