REPUBLIC OF KOREA NAVY (SOUTH KOREA)

NON-NAVAL FORCES

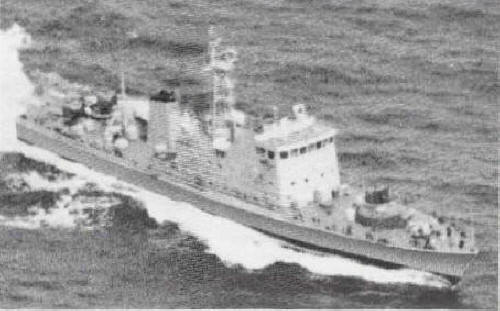

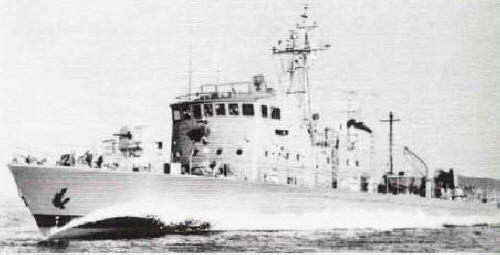

HAEUL 1 patrol craft (1979-1982)

Name No Yard No Builder Laid down Launched Comp Fate
해울 1 [Haeul 1] 251   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 2 [Haeul 2] 252   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 3 [Haeul 3] 253   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 5 [Haeul 5] 255   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 6 [Haeul 6] 256   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 7 [Haeul 7] 257   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 8 [Haeul 8] 258   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 9 [Haeul 9] 259   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 10 [Haeul 10] 260   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 11 [Haeul 11] 261   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 12 [Haeul 12] 262   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 13 [Haeul 13] 263   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 15 [Haeul 15] 265   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 16 [Haeul 16] 266   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 17 [Haeul 17] 267   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2011, to Vietnam (CSB-2015)
해울 18 [Haeul 18] 268   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 19 [Haeul 19] 269   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 20 [Haeul 20] 270   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 21 [Haeul 21] 271   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2011, to Vietnam (CSB-2016)
해울 22 [Haeul 22] 272   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 23 [Haeul 23] 273   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 25 [Haeul 25] 275   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s
해울 26 [Haeul 26] 276   Hyundai, Ulsan or Hanjin, Masan     1979-82 stricken 2010s


Displacement standard, t

 250

Displacement full, t

280

Length, m

47.8

Breadth, m

7.10

Draught, m

2.12 hull 2.50 propellers

No of shafts

2

Machinery

2 MTU 16V538 diesels

Power, h. p.

7320

Max speed, kts

28

Fuel, t

diesel oil
Endurance, nm(kts) 3300(15)

Armament

2 x 2 - 20/70 Mk 24 or 1 x 2 - 20/70 Mk 24 or 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90

Electronic equipment

radar

Complement

29

Project history: Large patrol craft. 250t class.

Modernizations: None.

Naval service: No significant events.
