Paek Ku 52 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 갈매기 12 [Paek Ku 12], 1978- 갈매기 52 [Paek Ku 52] | 12, 1978- 352, 1995- 582 | Tacoma Boatbuilding, USA | 14.3.1975 | stricken 2005 | |||
| 갈매기 13 [Paek Ku 13], 1978- 갈매기 53 [Paek Ku 53] | 13, 1978- 353, 1995- 583 | Tacoma Boatbuilding, USA | 14.3.1975 | stricken 2005 | |||
| 갈매기 15 [Paek Ku 15], 1978- 갈매기 55 [Paek Ku 55] | 15, 1978- 355, 1995- 585 | Tacoma Boatbuilding, USA | 1.2.1976 | stricken 2005 | |||
| 갈매기 16 [Paek Ku 16], 1978- 갈매기 56 [Paek Ku 56] | 16, 1978- 356, 1995- 586 | Hanjin, Chinhae | 1.2.1976 | stricken 2005 | |||
| 갈매기 17 [Paek Ku 17], 1978- 갈매기 57 [Paek Ku 57] | 17, 1978- 357, 1995- 587 | Hanjin, Chinhae | 1977 | stricken 2005 | |||
| 갈매기 18 [Paek Ku 18], 1978- 갈매기 58 [Paek Ku 58] | 18, 1978- 358, 1995- 588 | Hanjin, Chinhae | 1977 | stricken 2005 | |||
| 갈매기 19 [Paek Ku 19], 1978- 갈매기 59 [Paek Ku 59] | 19, 1978- 359, 1995- 589 | Hanjin, Chinhae | 1977 | stricken 2005 | |||
| 갈매기 61 [Paek Ku 61] | 361, 1995- 591 | Hanjin, Chinhae | 1978 | stricken 2005 |
|
Displacement standard, t |
240 |
|
Displacement full, t |
268 |
|
Length, m |
50.3 pp 53.7 oa |
|
Breadth, m |
8.00 |
|
Draught, m |
1.63 |
|
No of shafts |
2 |
|
Machinery |
6 AVCO TF-35 gas turbines |
|
Power, h. p. |
16800 |
|
Max speed, kts |
40 |
|
Fuel, t |
gas turbine oil |
| Endurance, nm(kts) |
2400(18) |
|
Armament |
581, 582, 583, 585: 2 x 2 Standard ARM SSM (4 RGM-66D), 1 x 1 - 76/50 Mk 34, 2 x 1 - 12.7/90 586, 587, 589, 591: 2 x 2 Harpoon SSM (4 RGM-84A), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 30/75 Emerlec EX-30, 2 x 1 - 12.7/90 |
|
Electronic equipment |
581, 582, 583, 585: LN-66, SPG-50 radars, 2x Mk 34 RBOC II decoy RL 586, 587, 589, 591: LN-66, HC 75, SPS-58, W-120 radars, 2x Mk 34 RBOC II decoy RL |
| Complement |
32 |
Project history: Based on the US Asheville design and built for Korean Navy. Considered as multi-mission patrol ships (PSMM), by their builders. Aluminium hulls. The six TF-35 gas turbines turn two propeller shafts and one or two or three turbines can be selected to provide each shaft with variety of power settings.
Modernizations: None.
Naval service: No significant events.

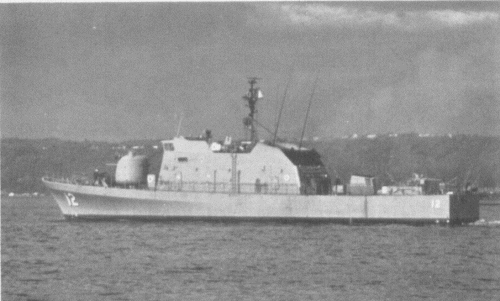

Paek Ku 12 1975

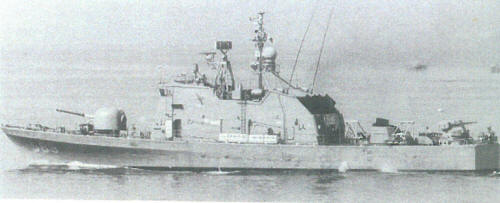

Paek Ku 55 1998
