REPUBLIC OF KOREA NAVY (SOUTH KOREA)

COASTAL FORCES

PAEK KU 11 fast attack craft (gun) (1970/1971)

Paek Ku 51 1980

Name No Yard No Builder Laid down Launched Comp Fate
갈매기 11 [Paek Ku 11] (ex-Benicia), 1978- 갈매기 51 [Paek Ku 51] 11, 1978- 351, 1995- 581   Tacoma BB, USA 4.1969 20.12.1969 4.1970 // 15.10.1971 stricken 8.1996


Displacement standard, t

225

Displacement full, t

245

Length, m

50.1

Breadth, m

7.30

Draught, m

2.90

No of shafts

2

Machinery

CODOG: 2 Cummins VT12-875M diesels / 1 General Electric LM-1500-PE102 gas turbine

Power, h. p.

1450 / 12500

Max speed, kts

16 / 40

Fuel, t

diesel / gas turbine oil

Endurance, nm(kts)

1700(16)

Armament

1 x 1 - 76/50 Mk 34, 1 x 1 - 40/60 Mk 3, 2 x 2 - 12.7/90

Electronic equipment

Raytheon 1645, SPG-50 radars

Complement

28

Project history: Former USN Asheille class craft.

Modernizations: 1976: + 2 x 2 Standard ARM SSM (4 RGM-66D)

Naval service: No significant events.

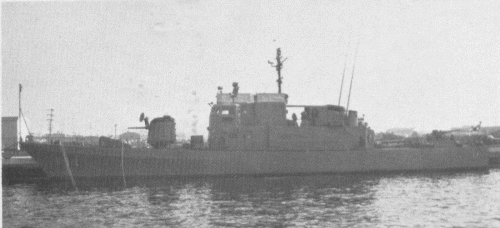

Paek Ku 11 1972
