Names |
151 - 153 남학생 51-53 [Haksaeng 51 - 53] 155 - 159 남학생 55-59 [Haksaeng 55 - 59] 161 - 163 남학생 61-63 [Haksaeng 61 - 63] 165 - 169 남학생 65-69 [Haksaeng 65 - 69] 171 - 173 남학생 71-73 [Haksaeng 71 - 73] 175 - 179 남학생 75-79 [Haksaeng 75 - 79] 181 - 183 남학생 81-83 [Haksaeng 81 - 83] 185 - 189 남학생 85-89 [Haksaeng 85 - 89] |
|
Builders |
Korea SB, Pusan: 151 - 153, 155 - 159, 161 - 163, 165 - 169, 171 - 173, 175 - 179, 181 - 183, 185 - 189 |
|
Commissioned |
1975-1978: 151 - 153, 155 - 159, 161 - 163, 165 - 169, 171 - 173, 175 - 179, 181 - 183, 185 - 189 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
late 1990s: 151 - 153, 155 - 159, 161 - 163, 165 - 169, 171 - 173, 175 - 179, 181 - 183, 185 - 189 |
|
Displacement standard, t |
70 |
|
Displacement full, t |
78 |
|
Length, m |
25.7 |
|
Breadth, m |
5.40 |
|
Draught, m |
1.20 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V538 TD90 diesels |
|
Power, h. p. |
5200 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
500(20) |
|
Armament |
earlier: 1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10, 2 x 2 - 12.7/90 later: 1 x 1 - 40/60 Daewoo ADS, 3 x 2 - 12.7/90 |
|
Electronic equipment |
radar |
| Complement |
25 |
Project history: Small patrol boats. Armament varied.
Modernizations: None.
Naval service: No significant events.

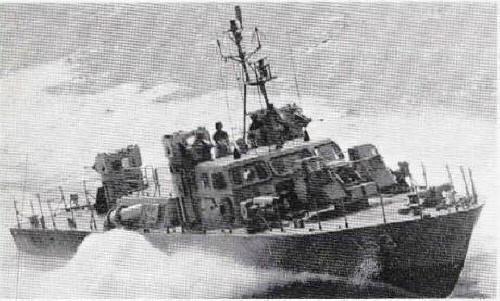

PK182 1982

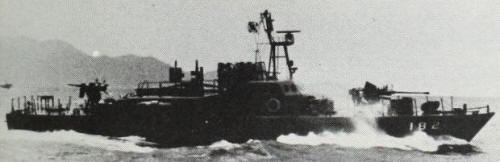

PK153 1983
