1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| (i) (ex-S-75) | 444 Marti Yd, Nikolayev, USSR | 31.3.1953 | 8.8.1953 | 14.12.1953 // 3.1963 | hulk 2003/05 | ||
| (ii) (ex-S-90) | 444 Marti Yd, Nikolayev, USSR | 12.11.1953 | 31.12.1953 | 22.9.1954 // 3.1963 | hulk 2003/05 | ||
| (iii) (ex-S-325) | 112 Zhdanov Yd, Gorkiy, USSR | 23.7.1955 | 29.11.1955 | 17.8.1956 // 6.1966 | hulk 2003/05 | ||
| (iv) (ex-S-326) | 112 Zhdanov Yd, Gorkiy, USSR | 31.7.1955 | 24.12.1955 | 19.7.1956 // 6.1966 | hulk 2003/05 |
|
Displacement standard, t |
|
|
Displacement normal, t |
1045 / 1342 |
|
Length, m |
76.0 |
|
Breadth, m |
6.30 |
|
Draught, m |
4.55 |
|
No of shafts |
2 |
|
Machinery |
2 37D diesels / 2 PG-101 electric motors |
|
Power, h. p. |
4000 / 2700 |
|
Max speed, kts |
18.3 / 13.1 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
8580(10) / 353(2) |
|
Armament |
6 - 533 TT (4 bow, 2 stern, 12 or 22 mines) |
|
Electronic equipment |
Flag radar, Tamir-5L, Feniks sonars, Nakat ECM suite |
|
Complement |
55 |
|
Diving depth operational, m |
170 |

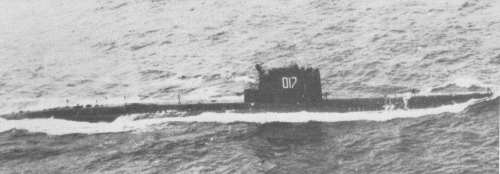

Project history: Former Soviet Project 613 submarines.
Modernizations: none
Naval service: In 2005 all four submarines were no longer operational but can be used as stationary training boats, battery recharging stations etc.
© Ivan Gogin, 2016
