KOREAN PEOPLE'S ARMY NAVAL FORCE (NORTH KOREA)

COASTAL FORCES

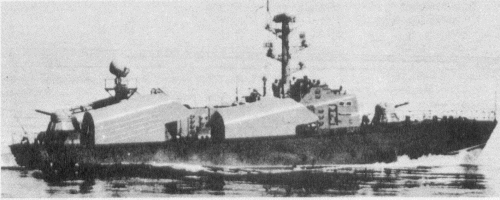

'SOJU' fast attack craft (missile) (1981-1993)

1995

Name No Yard No Builder Laid down Launched Comp Fate
(i)     North Korea     1981-90 stricken early 2000s?
(ii)     North Korea     1981-90 stricken early 2000s?
(iii)     North Korea     1981-90 stricken early 2000s?
(iv)     North Korea     1981-90 stricken early 2000s?
(v)     North Korea     1981-90 in service (2019)?
(vi)     North Korea     1981-90 in service (2019)?
(vii)     North Korea     1981-90 in service (2019)?
(viii)     North Korea     1981-90 in service (2019)?
(ix)     North Korea     1981-90 in service (2019)?
(x)     North Korea     1981-90 in service (2019)?
(xi)     North Korea     1981-90 in service (2019)?
(xii)     North Korea     1981-90 in service (2019)?
(xiii)     North Korea     1993 in service (2019)?
(xiv)     North Korea     1993 in service (2019)?




Displacement standard, t



Displacement full, t

220

Length, m

43.0

Breadth, m

7.50

Draught, m

1.70

No of shafts

3

Machinery

3 M-503A diesels

Power, h. p.

12000

Max speed, kts

34

Fuel, t

diesel oil

Endurance, nm(kts)

600(30)

Armament

4 x 1 P-15 SSM (4 P-15), 2 x 2 - 30/71 AK-230

Sensors

MR-101 Rangout, MR-104 Rys' radars

Complement

30

Project history: North Korean version of Soviet project 205.

Modernizations: none

Naval service: No significant events.
