1975
|
Names |
42 boats |
|
Builders |
USSR: 27 boats China: 15 boats |
|
Commissioned |
1949-1960 // 1953-1972: 27 boats 1956-1966 // 1966-1978: 15 boats |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
early 1980s: 2 boats late 1980s: 8 boats early 1990s: 8 boats late 1990s: 12 boats 2000-2002: 12 boats |
|
Displacement standard, t |
57 |
|
Displacement full, t |
67 |
|
Length, m |
25.5 |
|
Breadth, m |
6.18 |
|
Draught, m |
1.24 |
|
No of shafts |
4 |
|
Machinery |
4 M-50F diesels |
|
Power, h. p. |
4800 |
|
Max speed, kts |
43 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1000(14) |
|
Armament |
2 x 2 - 25/80 2M-3M, 2 x 1 - 533 TT or 18 mines, 8 DC |
|
Sensors |
Reya radar |
|
Complement |
14 |

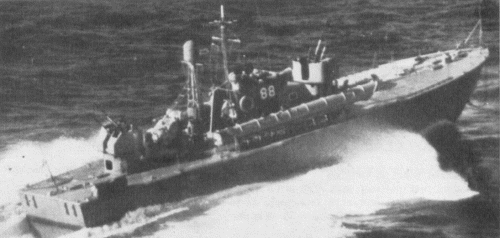

Project history: Former Soviet and Chinese Project 183 MTBs.
Modernizations: none
Naval service: No significant events.
1972
