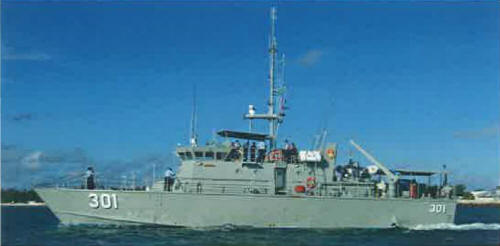

TEANOAI patrol boat (1994)
Teanoai 1995
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Teanoai | 301 | ASI, Jervis Bay, Australia | 22.1.1994 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
165 |
|
Length, m |
28.6 pp 31.5 oa |
|
Breadth, m |
8.10 |
|
Draught, m |
1.80 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3516 diesels |
|
Power, h. p. |
2820 |
|
Max speed, kts |
21 |
|
Fuel, t |
diesel oil 28 |
|
Endurance, nm(kts) |
2500(12) |
|
Armament |
1 x 1 - 12.7/90 (fitted for) |
| Electronic equipment | Furuno 1011 radar |
|
Complement |
17 |
Project history: ASI315, or 'Pacific Patrol Boat' design, built as grant-aid by Australia. Aluminium construction.
Modernizations: None.
Naval service: No significant events.
Teanoai 2008
